Actek | SKU:
Actek-56100
Actek Forged Swivel Hoist Rings (Inch)
$66.87
Unit price
/
Unavailable
Actek Forged Swivel Hoist Rings (Inch) - 600 lbs / 1/4" - 20 / 0.5 in is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek Forged Swivel Hoist Rings (Inch)
From
$66.87
Unit price
/
Unavailable
Related Products:
Characteristics:

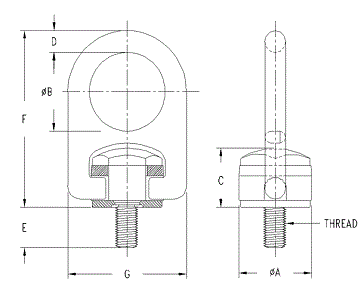

| Part Number | Rated Load | Thread Size | A | B | C | D | E | F | G | Torque | Weight | Applicable Screw PN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 56100 | 600 lbs | 1/4" - 20 | 1.32 in | 1.40 in | 1.22 in | 0.44 in | 0.5 in | 3.41 in | 2.38 in | 5 ft-lbs | 1 lbs | 56138 |
| 56102 | 800 lbs | 5/16" - 18 | 1.32 in | 1.40 in | 1.22 in | 0.44 in | 0.5 in | 3.41 in | 2.38 in | 7 ft-lbs | 1 lbs | 56142 |
| 56104 | 800 lbs | 5/16" - 18 | 1.32 in | 1.40 in | 1.22 in | 0.44 in | 1 in | 3.41 in | 2.38 in | 7 ft-lbs | 1 lbs | 56144 |
| 56106 | 1,000 lbs | 3/8" - 16 | 1.32 in | 1.40 in | 1.21 in | 0.44 in | 0.5 in | 3.41 in | 2.38 in | 12 ft-lbs | 1 lbs | 56146 |
| 56107 | 1,000 lbs | 3/8" - 16 | 1.32 in | 1.40 in | 1.21 in | 0.44 in | 1 in | 3.41 in | 2.38 in | 12 ft-lbs | 1 lbs | 56147 |
| 56008 | 2,500 lbs | 1/2" - 13 | 2.23 in | 2.40 in | 2.00 in | 0.75 in | 0.75 in | 5.68 in | 4.05 in | 28 ft-lbs | 4 lbs | 56048 |
| 56010 | 2,500 lbs | 1/2" - 13 | 2.23 in | 2.40 in | 2.00 in | 0.75 in | 1 in | 5.68 in | 4.05 in | 28 ft-lbs | 4 lbs | 56050 |
| 56012 | 2,500 lbs | 1/2" - 13 | 2.23 in | 2.40 in | 2.00 in | 0.75 in | 1.25 in | 5.68 in | 4.05 in | 28 ft-lbs | 4 lbs | 56052 |
| 56002 | 4,000 lbs | 5/8" - 11 | 2.23 in | 2.40 in | 1.99 in | 0.75 in | 0.75 in | 5.68 in | 4.05 in | 60 ft-lbs | 4 lbs | 56056 |
| 56004 | 4,000 lbs | 5/8" - 11 | 2.23 in | 2.40 in | 1.99 in | 0.75 in | 1 in | 5.68 in | 4.05 in | 60 ft-lbs | 4 lbs | 56044 |
| 56006 | 4,000 lbs | 5/8" - 11 | 2.23 in | 2.40 in | 1.99 in | 0.75 in | 1.25 in | 5.68 in | 4.05 in | 60 ft-lbs | 4 lbs | 56046 |
| 56014 | 5,000 lbs | 3/4" - 10 | 2.23 in | 2.40 in | 1.98 in | 0.75 in | 1 in | 5.68 in | 4.05 in | 100 ft-lbs | 4 lbs | 56054 |
| 56018 | 5,000 lbs | 3/4" - 10 | 2.23 in | 2.40 in | 1.98 in | 0.75 in | 1.5 in | 5.68 in | 4.05 in | 100 ft-lbs | 4 lbs | 56058 |
| 56204 | 7,000 lbs | 3/4" - 10 | 2.95 in | 3.20 in | 2.66 in | 1.00 in | 1 in | 7.58 in | 5.40 in | 100 ft-lbs | 9 lbs | 56244 |
| 56203 | 7,000 lbs | 3/4" - 10 | 2.95 in | 3.20 in | 2.66 in | 1.00 in | 1.25 in | 7.58 in | 5.40 in | 100 ft-lbs | 9 lbs | 56245 |
| 56206 | 7,000 lbs | 3/4" - 10 | 2.95 in | 3.20 in | 2.66 in | 1.00 in | 1.5 in | 7.58 in | 5.40 in | 100 ft-lbs | 9 lbs | 56246 |
| 56202 | 8,000 lbs | 7/8" - 9 | 2.95 in | 3.20 in | 2.64 in | 1.00 in | 1 in | 7.58 in | 5.40 in | 160 ft-lbs | 9 lbs | 56242 |
| 56205 | 8,000 lbs | 7/8" - 9 | 2.95 in | 3.20 in | 2.64 in | 1.00 in | 1.25 in | 7.58 in | 5.40 in | 160 ft-lbs | 9 lbs | 56243 |
| 56210 | 10,000 lbs | 1" - 8 | 2.95 in | 3.20 in | 2.64 in | 1.00 in | 1.25 in | 7.58 in | 5.40 in | 230 ft-lbs | 9 lbs | 56250 |
| 56212 | 10,000 lbs | 1" - 8 | 2.95 in | 3.20 in | 2.64 in | 1.00 in | 1.5 in | 7.58 in | 5.40 in | 230 ft-lbs | 9 lbs | 56252 |
| 56214 | 10,000 lbs | 1" - 8 | 2.95 in | 3.20 in | 2.64 in | 1.00 in | 2.25 in | 7.58 in | 5.40 in | 230 ft-lbs | 9 lbs | 56254 |
| 56802 | 15,000 lbs | 1 1/4" - 7 | 3.73 in | 4.00 in | 3.28 in | 1.25 in | 2 in | 9.39 in | 6.75 in | 470 ft-lbs | 18 lbs | 56842 |
| 56804 | 15,000 lbs | 1 1/4" - 7 | 3.73 in | 4.00 in | 3.28 in | 1.25 in | 2.75 in | 9.39 in | 6.75 in | 470 ft-lbs | 18 lbs | 56846 |
| 56702 | 20,000 lbs | 1 3/8" - 6 | 3.73 in | 4.00 in | 3.26 in | 1.25 in | 2.75 in | 9.39 in | 6.75 in | 540 ft-lbs | 19 lbs | 56752 |
| 56404 | 24,000 lbs | 1 1/2" - 6 | 3.73 in | 4.00 in | 3.26 in | 1.25 in | 2.75 in | 9.39 in | 6.75 in | 800 ft-lbs | 19 lbs | 56444 |
Features
- Units: Inch
- Material: Alloy Steel
- Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
- Swivel Angle: 360°
- Pivot Angle: 180°
- Safety Factor: 5:1
