Actek | SKU:
Actek-46100
Actek Safety Swivel Hoist Ring (Inch, Standard U-Bar)
$119.64
Unit price
/
Unavailable
Actek Safety Swivel Hoist Ring (Inch, Standard U-Bar) - 600 lbs / 1/4" - 20 / 0.54 in is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek Safety Swivel Hoist Ring (Inch, Standard U-Bar)
From
$103.08
Unit price
/
Unavailable
Related Products:
- Actek Safety Swivel Hoist Ring (Metric, Standard U-Bar)
- Actek Safety Swivel Hoist Ring (Metric, Long U-Bar)
- Actek Safety Swivel Hoist Ring (Inch, Long U-Bar)
Characteristics:

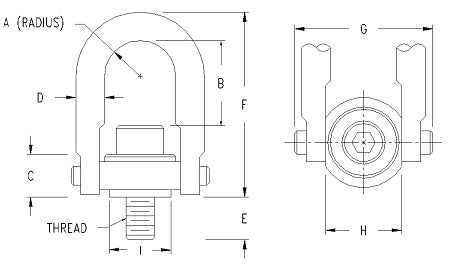

| Part Number | Rated Load | Thread Size | A | B | C | D | E | F | G | H | I | Torque | Weight | Replacement Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46100 | 600 lbs | 1/4" - 20 | .47 in | 1.39 in | 0.71 in | 3/8 in | 0.54 in | 2.72 in | 1.91 in | 1 in | 0.85 in | 6 ft-lbs | .3 lbs | 46139 |
| 46102 | 800 lbs | 5/16" - 18 | .47 in | 1.32 in | 0.71 in | 3/8 in | 0.29 in | 2.72 in | 1.91 in | 1 in | 0.85 in | 7 ft-lbs | .3 lbs | 46142 |
| 46104 | 800 lbs | 5/16" - 18 | .47 in | 1.32 in | 0.71 in | 3/8 in | 0.54 in | 2.72 in | 1.91 in | 1 in | 0.85 in | 7 ft-lbs | .3 lbs | 46144 |
| 46106 | 1,000 lbs | 3/8" - 16 | .47 in | 1.26 in | 0.71 in | 3/8 in | 0.54 in | 2.72 in | 1.91 in | 1 in | 0.85 in | 12 ft-lbs | .3 lbs | 46146 |
| 46606 | 2,000 lbs | 7/16" - 14 | .71 in | 1.95 in | 0.93 in | 1/2 in | 1.07 in | 3.81 in | 2.66 in | 1.49 in | 1.20 in | 22 ft-lbs | 1 lbs | 46614 |
| 46602 | 2,500 lbs | 1/2" - 13 | .71 in | 1.88 in | 0.93 in | 1/2 in | 1.07 in | 3.81 in | 2.66 in | 1.49 in | 1.20 in | 28 ft-lbs | 1 lbs | 46636 |
| 46000 | 2,000 lbs | 7/16" - 14 | .92 in | 2.52 in | 1.23 in | 3/4 in | 0.78 in | 4.93 in | 3.66 in | 1.98 in | 1.45 in | 22 ft-lbs | 2.6 lbs | 46076 |
| 46008 | 2,500 lbs | 1/2" - 13 | .92 in | 2.46 in | 1.23 in | 3/4 in | 0.78 in | 4.93 in | 3.66 in | 1.98 in | 1.45 in | 28 ft-lbs | 2.6 lbs | 46048 |
| 46010 | 2,500 lbs | 1/2" - 13 | .92 in | 2.46 in | 1.23 in | 3/4 in | 1.03 in | 4.93 in | 3.66 in | 1.98 in | 1.45 in | 28 ft-lbs | 2.6 lbs | 46050 |
| 46012 | 2,500 lbs | 1/2" - 13 | .92 in | 2.46 in | 1.23 in | 3/4 in | 1.28 in | 4.93 in | 3.66 in | 1.98 in | 1.45 in | 28 ft-lbs | 2.6 lbs | 46052 |
| 46007 | 2,500 lbs | 9/16" - 12 | .92 in | 2.39 in | 1.23 in | 3/4 in | 0.78 in | 4.93 in | 3.66 in | 1.98 in | 1.45 in | 30 ft-lbs | 2.6 lbs | 46039 |
| 46002 | 4,000 lbs | 5/8" - 11 | .92 in | 2.33 in | 1.23 in | 3/4 in | 0.78 in | 4.93 in | 3.66 in | 1.98 in | 1.45 in | 60 ft-lbs | 2.6 lbs | 46056 |
| 46004 | 4,000 lbs | 5/8" - 11 | .92 in | 2.33 in | 1.23 in | 3/4 in | 1.03 in | 4.93 in | 3.66 in | 1.98 in | 1.45 in | 60 ft-lbs | 2.6 lbs | 46044 |
| 46006 | 4,000 lbs | 5/8" - 11 | .92 in | 2.33 in | 1.23 in | 3/4 in | 1.28 in | 4.93 in | 3.66 in | 1.98 in | 1.45 in | 60 ft-lbs | 2.6 lbs | 46046 |
| 46005 | 4,000 lbs | 5/8" - 11 | .92 in | 2.33 in | 1.23 in | 3/4 in | 1.53 in | 4.93 in | 3.66 in | 1.98 in | 1.45 in | 60 ft-lbs | 2.6 lbs | 46045 |
| 46014 | 5,000 lbs | 3/4" - 10 | .92 in | 2.21 in | 1.23 in | 3/4 in | 1.03 in | 4.93 in | 3.66 in | 1.98 in | 1.45 in | 100 ft-lbs | 3 lbs | 46054 |
| 46018 | 5,000 lbs | 3/4" - 10 | .92 in | 2.21 in | 1.23 in | 3/4 in | 1.53 in | 4.93 in | 3.66 in | 1.98 in | 1.45 in | 100 ft-lbs | 3 lbs | 46058 |
| 46204 | 7,000 lbs | 3/4" - 10 | 1.41 in | 3.14 in | 1.71 in | 1 in | 1.04 in | 6.60 in | 5.16 in | 2.99 in | 2.20 in | 100 ft-lbs | 7 lbs | 46244 |
| 46206 | 7,000 lbs | 3/4" - 10 | 1.41 in | 3.14 in | 1.71 in | 1 in | 1.54 in | 6.60 in | 5.16 in | 2.99 in | 2.20 in | 100 ft-lbs | 7 lbs | 46246 |
| 46202 | 8,000 lbs | 7/8" - 9 | 1.41 in | 3.02 in | 1.71 in | 1 in | 1.04 in | 6.60 in | 5.16 in | 2.99 in | 2.20 in | 160 ft-lbs | 7 lbs | 46242 |
| 46203 | 8,000 lbs | 7/8" - 9 | 1.41 in | 3.02 in | 1.71 in | 1 in | 1.29 in | 6.60 in | 5.16 in | 2.99 in | 2.20 in | 160 ft-lbs | 7 lbs | 46243 |
| 46205 | 8,000 lbs | 7/8" - 9 | 1.41 in | 3.02 in | 1.71 in | 1 in | 1.54 in | 6.60 in | 5.16 in | 2.99 in | 2.20 in | 160 ft-lbs | 7 lbs | 46270 |
| 46210 | 10,000 lbs | 1" - 8 | 1.41 in | 2.89 in | 1.71 in | 1 in | 1.29 in | 6.60 in | 5.16 in | 2.99 in | 2.20 in | 230 ft-lbs | 7.5 lbs | 46250 |
| 46212 | 10,000 lbs | 1" - 8 | 1.41 in | 2.89 in | 1.71 in | 1 in | 1.54 in | 6.60 in | 5.16 in | 2.99 in | 2.20 in | 230 ft-lbs | 7.5 lbs | 46252 |
| 46214 | 10,000 lbs | 1" - 8 | 1.41 in | 2.89 in | 1.71 in | 1 in | 2.29 in | 6.60 in | 5.16 in | 2.99 in | 2.20 in | 230 ft-lbs | 7.5 lbs | 46254 |
| 46216 | 10,000 lbs | 1 1/8" - 7 | 1.41 in | 2.77 in | 1.71 in | 1 in | 2.29 in | 6.60 in | 5.16 in | 2.99 in | 2.20 in | 230 ft-lbs | 7.5 lbs | 46280 |
| 46217 | 10,000 lbs | 1 1/8" - 8 | 1.41 in | 2.77 in | 1.71 in | 1 in | 2.29 in | 6.60 in | 5.16 in | 2.99 in | 2.20 in | 230 ft-lbs | 7.5 lbs | 46260 |
| 46802 | 15,000 lbs | 1 1/4" - 7 | 1.76 in | 4.20 in | 2.12 in | 1 1/4 in | 1.89 in | 8.82 in | 6.25 in | 3.76 in | 3.20 in | 470 ft-lbs | 14 lbs | 46842 |
| 46805 | 15,000 lbs | 1 1/4" - 8 | 1.76 in | 4.20 in | 2.12 in | 1 1/4 in | 1.89 in | 8.82 in | 6.25 in | 3.76 in | 3.20 in | 470 ft-lbs | 14 lbs | 46845 |
| 46806 | 15,000 lbs | 1 3/8" - 6 | 1.76 in | 4.07 in | 2.12 in | 1 1/4 in | 1.89 in | 8.82 in | 6.25 in | 3.76 in | 3.20 in | 470 ft-lbs | 14.5 lbs | 46871 |
| 46807 | 15,000 lbs | 1 3/8" - 8 | 1.76 in | 4.07 in | 2.12 in | 1 1/4 in | 1.89 in | 8.82 in | 6.25 in | 3.76 in | 3.20 in | 470 ft-lbs | 14.5 lbs | 46865 |
| 46702 | 20,000 lbs | 1 3/8" - 6 | 2 in | 5.36 in | 2.44 in | 1 1/2 in | 2.50 in | 10.67 in | 7.27 in | 4.31 in | 3.70 in | 540 ft-lbs | 23 lbs | 46752 |
| 46404 | 24,000 lbs | 1 1/2" - 6 | 2.27 in | 6.50 in | 2.81 in | 1 3/4 in | 2.70 in | 12.56 in | 8.34 in | 4.87 in | 4.15 in | 800 ft-lbs | 34 lbs | 46444 |
| 46405 | 24,000 lbs | 1 1/2" - 8 | 2.27 in | 6.50 in | 2.81 in | 1 3/4 in | 2.70 in | 12.56 in | 8.34 in | 4.87 in | 4.15 in | 800 ft-lbs | 34 lbs | 46415 |
| 46408 | 24,000 lbs | 1 3/4" - 5 | 2.27 in | 6.25 in | 2.81 in | 1 3/4 in | 3.20 in | 12.56 in | 8.34 in | 4.87 in | 4.15 in | 800 ft-lbs | 34 lbs | 46449 |
| 46406 | 24,000 lbs | 1 3/4" - 8 | 2.27 in | 6.25 in | 2.81 in | 1 3/4 in | 3.20 in | 12.56 in | 8.34 in | 4.87 in | 4.15 in | 800 ft-lbs | 34 lbs | 46447 |
| 46400 | 30,000 lbs | 2" - 4 1/2 | 2.27 in | 6 in | 2.81 in | 1 3/4 in | 3.20 in | 12.56 in | 8.34 in | 4.87 in | 4.15 in | 800 ft-lbs | 36 lbs | 46450 |
| 46440 | 30,000 lbs | 2" - 8 | 2.27 in | 6 in | 2.81 in | 1 3/4 in | 3.20 in | 12.56 in | 8.34 in | 4.87 in | 4.15 in | 800 ft-lbs | 36 lbs | 46412 |
| 46368 | 35,000 lbs | 2 1/2" - 8 | 2.27 in | 5.50 in | 3.01 in | 1 3/4 in | 3.90 in | 12.78 in | 8.34 in | 4.87 in | 4.70 in | 2,100 ft-lbs | 40 lbs | 46339 |
| 47006 | 50,000 lbs | 2 1/2" - 4 | 3 in | 7.71 in | 4.10 in | 2 1/4 in | 4 in | 16.56 in | 10.72 in | 6.52 in | 5.40 in | 2,100 ft-lbs | 88 lbs | 47056 |
| 47002 | 50,000 lbs | 2 1/2" - 8 | 3 in | 7.71 in | 4.10 in | 2 1/4 in | 4 in | 16.56 in | 10.72 in | 6.52 in | 5.40 in | 2,100 ft-lbs | 88 lbs | 47052 |
| 47200 | 75,000 lbs | 3" - 4 | 3.75 in | 8.96 in | 5.28 in | 2 3/4 in | 5.25 in | 20 in | 14.12 in | 8.10 in | 6.45 in | 4,300 ft-lbs | 166 lbs | 47252 |
| 47202 | 75,000 lbs | 3" - 8 | 3.75 in | 8.96 in | 5.28 in | 2 3/4 in | 5.25 in | 20 in | 14.12 in | 8.10 in | 6.45 in | 4,300 ft-lbs | 166 lbs | 47251 |
| 46351 | 1,250 lbs | 7/16" - 14 | .47 in | 1.20 in | 0.73 in | 3/8 in | 0.79 in | 2.74 in | 1.91 in | 1 in | 0.99 in | 22 ft-lbs | .4 lbs | 46310 |
| 46352 | 1,500 lbs | 1/2" - 13 | .47 in | 1.14 in | 0.73 in | 3/8 in | 0.79 in | 2.74 in | 1.91 in | 1 in | 0.99 in | 28 ft-lbs | .4 lbs | 46311 |
| 46353 | 6,000 lbs | 7/8" - 9 | .92 in | 2.08 in | 1.25 in | 3/4 in | 1.53 in | 4.95 in | 3.66 in | 1.98 in | 1.99 in | 160 ft-lbs | 3 lbs | 46312 |
| 46354 | 6,500 lbs | 1" - 8 | .92 in | 1.96 in | 1.25 in | 3/4 in | 1.53 in | 4.95 in | 3.66 in | 1.98 in | 1.99 in | 230 ft-lbs | 3 lbs | 46313 |
| 46355 | 11,500 lbs | 1 1/4" - 7 | 1.41 in | 2.64 in | 1.88 in | 1 in | 2.10 in | 6.77 in | 5.16 in | 2.99 in | 2.70 in | 470 ft-lbs | 8 lbs | 46314 |
| 46356 | 12,000 lbs | 1 3/8" - 6 | 1.41 in | 2.52 in | 1.88 in | 1 in | 2.10 in | 6.77 in | 5.16 in | 2.99 in | 2.70 in | 470 ft-lbs | 8 lbs | 46315 |
| 46357 | 12,500 lbs | 1 1/2" - 6 | 1.41 in | 2.39 in | 1.88 in | 1 in | 2.10 in | 6.77 in | 5.16 in | 2.99 in | 2.70 in | 800 ft-lbs | 8 lbs | 46316 |
| 46359 | 16,500 lbs | 1 1/2" - 6 | 1.75 in | 3.95 in | 2.17 in | 1 1/4 in | 2.80 in | 8.87 in | 6.25 in | 3.76 in | 3.45 in | 800 ft-lbs | 16 lbs | 46318 |
| 46360 | 17,000 lbs | 1 5/8" - 5 1/2 | 1.76 in | 3.83 in | 2.17 in | 1 1/4 in | 2.80 in | 8.87 in | 6.25 in | 3.76 in | 3.45 in | 800 ft-lbs | 16 lbs | 46319 |
| 46361 | 17,500 lbs | 1 3/4" - 5 | 1.76 in | 3.70 in | 2.17 in | 1 1/4 in | 2.80 in | 8.87 in | 6.25 in | 3.76 in | 3.45 in | 800 ft-lbs | 16 lbs | 46321 |
| 46362 | 18,000 lbs | 1 7/8" - 5 | 1.76 in | 3.58 in | 2.17 in | 1 1/4 in | 2.80 in | 8.87 in | 6.25 in | 3.76 in | 3.45 in | 800 ft-lbs | 16 lbs | 46322 |
| 46363 | 18,500 lbs | 2" - 4 1/2 | 1.76 in | 3.45 in | 2.17 in | 1 1/4 in | 2.80 in | 8.87 in | 6.25 in | 3.76 in | 3.45 in | 800 ft-lbs | 16 lbs | 46323 |
| 46364 | 32,500 lbs | 2 1/4" - 4 1/2 | 2.27 in | 5.75 in | 3.01 in | 1 3/4 in | 3.00 in | 12.78 in | 8.34 in | 4.87 in | 4.70 in | 800 ft-lbs | 40 lbs | 46324 |
| 46364-8 | 32,500 lbs | 2 1/4" - 8 | 2.27 in | 5.75 in | 3.01 in | 1 3/4 in | 3.00 in | 12.78 in | 8.34 in | 4.87 in | 4.70 in | 800 ft-lbs | 40 lbs | 46324-8 |
| 46365 | 35,000 lbs | 2 1/2" - 4 | 2.27 in | 5.50 in | 3.01 in | 1 3/4 in | 3.90 in | 12.78 in | 8.34 in | 4.87 in | 4.70 in | 2,100 ft-lbs | 40 lbs | 46325 |
| 46366 | 55,000 lbs | 2 3/4" - 4 | 3 in | 7.46 in | 4.35 in | 2 1/4 in | 4 in | 16.81 in | 10.72 in | 6.52 in | 5.95 in | 2,100 ft-lbs | 92 lbs | 46326 |
| 46366-8 | 55,000 lbs | 2 3/4" - 8 | 3 in | 7.46 in | 4.35 in | 2 1/4 in | 4 in | 16.81 in | 10.72 in | 6.52 in | 5.95 in | 2,100 ft-lbs | 92 lbs | 46326-8 |
| 46367 | 60,000 lbs | 3" - 4 | 3 in | 7.22 in | 4.35 in | 2 1/4 in | 5 in | 16.81 in | 10.72 in | 6.52 in | 5.95 in | 4,300 ft-lbs | 92 lbs | 46327 |
| 46332 | 80,000 lbs | 3 1/2" - 4 | 3.75 in | 9.01 in | 5.28 in | 2 3/4 in | 5 in | 20 in | 14.12 in | 8.10 in | 6.45 in | 5,100 ft-lbs | 172 lbs | 46332-STUD |
| 46334 | 80,000 lbs | 3 1/2" - 8 | 3.75 in | 9.01 in | 5.28 in | 2 3/4 in | 5 in | 20 in | 14.12 in | 8.10 in | 6.45 in | 5,100 ft-lbs | 172 lbs | 46334-STUD |
Features
- Units: Inch
- Type: Standard U-Bar
- Material: Alloy Steel
- Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
- Swivel Angle: 360°
- Pivot Angle: 180°
- Safety Factor: 5:1
