Actek | SKU:
Actek-46912
Actek Safety Swivel Hoist Ring (Metric, Standard U-Bar)
$114.27
Unit price
/
Unavailable
Actek Safety Swivel Hoist Ring (Metric, Standard U-Bar) - 400 kg / M8 x 1.25 / 13 mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek Safety Swivel Hoist Ring (Metric, Standard U-Bar)
From
$114.27
Unit price
/
Unavailable
Related Products:
- Actek Safety Swivel Hoist Ring (Metric, Long U-Bar)
- Actek Safety Swivel Hoist Ring (Inch, Standard U-Bar)
- Actek Safety Swivel Hoist Ring (Inch, Long U-Bar)
Characteristics:

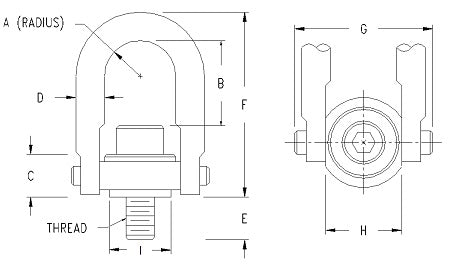

| Part Number | Rated Load | Thread Size | A | B | C | D | E | F | G | H | I | Torque | Weight | Replacement Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46912 | 400 kg | M8 x 1.25 | 12 mm | 34 mm | 18 mm | 10 mm | 13 mm | 69 mm | 49 mm | 25 mm | 22 mm | 9 Nm | .4 lbs | 49142 |
| 46913 | 400 kg | M8 x 1.25 | 12 mm | 34 mm | 18 mm | 10 mm | 18 mm | 69 mm | 49 mm | 25 mm | 22 mm | 9 Nm | .4 lbs | 49150 |
| 46916 | 500 kg | M10 x 1.50 | 12 mm | 32 mm | 18 mm | 10 mm | 18 mm | 69 mm | 49 mm | 25 mm | 22 mm | 16 Nm | .4 lbs | 49146 |
| 46608 | 1,050 kg | M12 x 1.75 | 18 mm | 49 mm | 24 mm | 13 mm | 27 mm | 97 mm | 68 mm | 38 mm | 31 mm | 37 Nm | 1 lbs | 49668 |
| 46924 | 1,050 kg | M12 x 1.75 | 23 mm | 63 mm | 31 mm | 19 mm | 19 mm | 125 mm | 93 mm | 50 mm | 37 mm | 37 Nm | 2.5 lbs | 49048 |
| 46928 | 1,050 kg | M14 x 2.00 | 23 mm | 61 mm | 31 mm | 19 mm | 29 mm | 125 mm | 93 mm | 50 mm | 37 mm | 40 Nm | 2.5 lbs | 49050 |
| 46933 | 1,900 kg | M16 x 2.00 | 23 mm | 59 mm | 31 mm | 19 mm | 24 mm | 125 mm | 93 mm | 50 mm | 37 mm | 80 Nm | 2.5 lbs | 49073 |
| 46930 | 1,900 kg | M16 x 2.00 | 23 mm | 59 mm | 31 mm | 19 mm | 29 mm | 125 mm | 93 mm | 50 mm | 37 mm | 80 Nm | 2.5 lbs | 49056 |
| 46934 | 1,900 kg | M18 x 2.50 | 23 mm | 57 mm | 31 mm | 19 mm | 29 mm | 125 mm | 93 mm | 50 mm | 37 mm | 90 Nm | 2.5 lbs | 49057 |
| 46938 | 2,150 kg | M20 x 2.50 | 23 mm | 55 mm | 31 mm | 19 mm | 29 mm | 125 mm | 93 mm | 50 mm | 37 mm | 135 Nm | 2.7 lbs | 49079 |
| 46936 | 2,150 kg | M20 x 2.50 | 23 mm | 55 mm | 31 mm | 19 mm | 34 mm | 125 mm | 93 mm | 50 mm | 37 mm | 135 Nm | 2.7 lbs | 49054 |
| 46941 | 3,000 kg | M20 x 2.50 | 36 mm | 79 mm | 43 mm | 25 mm | 27 mm | 168 mm | 131 mm | 76 mm | 56 mm | 135 Nm | 6.7 lbs | 49241 |
| 46942 | 3,000 kg | M20 x 2.50 | 36 mm | 79 mm | 43 mm | 25 mm | 32 mm | 168 mm | 131 mm | 76 mm | 56 mm | 135 Nm | 6.7 lbs | 49244 |
| 46944 | 3,000 kg | M22 x 2.50 | 36 mm | 77 mm | 43 mm | 25 mm | 37 mm | 168 mm | 131 mm | 76 mm | 56 mm | 135 Nm | 7 lbs | 49245 |
| 46947 | 4,200 kg | M24 x 3.00 | 36 mm | 75 mm | 43 mm | 25 mm | 32 mm | 168 mm | 131 mm | 76 mm | 56 mm | 311 Nm | 7 lbs | 49267 |
| 46948 | 4,200 kg | M24 x 3.00 | 36 mm | 75 mm | 43 mm | 25 mm | 37 mm | 168 mm | 131 mm | 76 mm | 56 mm | 311 Nm | 7 lbs | 49250 |
| 46956 | 7,000 kg | M30 x 3.50 | 45 mm | 108 mm | 54 mm | 32 mm | 42 mm | 224 mm | 159 mm | 96 mm | 81 mm | 637 Nm | 15 lbs | 49842 |
| 46955 | 7,000 kg | M30 x 3.50 | 45 mm | 108 mm | 54 mm | 32 mm | 46 mm | 224 mm | 159 mm | 96 mm | 81 mm | 637 Nm | 15 lbs | 49841 |
| 46958 | 7,000 kg | M30 x 3.50 | 45 mm | 108 mm | 54 mm | 32 mm | 62 mm | 224 mm | 159 mm | 96 mm | 81 mm | 637 Nm | 15 lbs | 49846 |
| 46957 | 7,000 kg | M30 x 3.50 | 45 mm | 108 mm | 54 mm | 32 mm | 67 mm | 224 mm | 159 mm | 96 mm | 81 mm | 637 Nm | 15 lbs | 49849 |
| 46960 | 7,000 kg | M33 x 3.50 | 45 mm | 105 mm | 54 mm | 32 mm | 67 mm | 224 mm | 159 mm | 96 mm | 81 mm | 637 Nm | 15 lbs | 49848 |
| 46961 | 10,000 kg | M33 x 3.50 | 51 mm | 138 mm | 62 mm | 38 mm | 58 mm | 271 mm | 185 mm | 109 mm | 94 mm | 637 Nm | 23 lbs | 49751 |
| 46962 | 10,000 kg | M33 x 3.50 | 51 mm | 138 mm | 62 mm | 38 mm | 68 mm | 271 mm | 185 mm | 109 mm | 94 mm | 637 Nm | 23 lbs | 49752 |
| 46963 | 11,000 kg | M36 x 4.00 | 58 mm | 167 mm | 71 mm | 44 mm | 58 mm | 319 mm | 212 mm | 124 mm | 105 mm | 1,085 Nm | 35 lbs | 49343 |
| 46966 | 11,000 kg | M36 x 4.00 | 58 mm | 167 mm | 71 mm | 44 mm | 64 mm | 319 mm | 212 mm | 124 mm | 105 mm | 1,085 Nm | 35 lbs | 49344 |
| 46964 | 11,000 kg | M36 x 4.00 | 58 mm | 167 mm | 71 mm | 44 mm | 68 mm | 319 mm | 212 mm | 124 mm | 105 mm | 1,085 Nm | 35 lbs | 49342 |
| 46965 | 12,500 kg | M42 x 4.50 | 58 mm | 161 mm | 71 mm | 44 mm | 68 mm | 319 mm | 212 mm | 124 mm | 105 mm | 1,085 Nm | 36 lbs | 49442 |
| 46968 | 12,500 kg | M42 x 4.50 | 58 mm | 161 mm | 71 mm | 44 mm | 83 mm | 319 mm | 212 mm | 124 mm | 105 mm | 1,085 Nm | 36 lbs | 49444 |
| 46980 | 13,500 kg | M48 x 5.00 | 58 mm | 155 mm | 71 mm | 44 mm | 68 mm | 319 mm | 212 mm | 124 mm | 105 mm | 1,085 Nm | 38 lbs | 49447 |
| 46970 | 13,500 kg | M48 x 5.00 | 58 mm | 155 mm | 71 mm | 44 mm | 83 mm | 319 mm | 212 mm | 124 mm | 105 mm | 1,085 Nm | 38 lbs | 49450 |
| 46979 | 13,500 kg | M48 x 5.00 | 58 mm | 155 mm | 71 mm | 44 mm | 88 mm | 319 mm | 212 mm | 124 mm | 105 mm | 1,085 Nm | 38 lbs | 49430 |
| 46972 | 22,300 kg | M64 x 6.00 | 76 mm | 195 mm | 104 mm | 57 mm | 101 mm | 421 mm | 272 mm | 166 mm | 137 mm | 2,847 Nm | 86 lbs | 49644 |
| 46988 | 31,500 kg | M72 x 6.00 | 95 mm | 219 mm | 134 mm | 70 mm | 132 mm | 508 mm | 359 mm | 206 mm | 165 mm | 5,830 Nm | 165 lbs | 49744 |
| 46989 | 31,500 kg | M80 x 6.00 | 95 mm | 211 mm | 134 mm | 70 mm | 132 mm | 508 mm | 359 mm | 206 mm | 165 mm | 5,830 Nm | 165 lbs | 49750 |
| 46994 | 44,600 kg | M100 x 6.00 | 102 mm | 227 mm | 172 mm | 83 mm | 200 mm | 560 mm | 426 mm | 216 mm | 203 mm | 6,914 Nm | 280 lbs | 49854 |
| 46990 | 44,600 kg | M90 x 6.00 | 102 mm | 227 mm | 172 mm | 83 mm | 178 mm | 560 mm | 426 mm | 216 mm | 203 mm | 6,914 Nm | 260 lbs | 49844 |
| 49301 | 625 kg | M12 x 1.75 | 12 mm | 30 mm | 19 mm | 10 mm | 23 mm | 70 mm | 49 mm | 25 mm | 25 mm | 37 Nm | .4 lbs | 49390 |
| 49302 | 2,650 kg | M22 x 2.50 | 23 mm | 53 mm | 32 mm | 19 mm | 39 mm | 126 mm | 93 mm | 50 mm | 51 mm | 311 Nm | 3 lbs | 49391 |
| 49303 | 2,850 kg | M24 x 3.00 | 23 mm | 51 mm | 32 mm | 19 mm | 39 mm | 126 mm | 93 mm | 50 mm | 51 mm | 311 Nm | 3 lbs | 49392 |
| 49304 | 5,000 kg | M33 x 3.50 | 36 mm | 66 mm | 48 mm | 25 mm | 42 mm | 172 mm | 131 mm | 76 mm | 69 mm | 637 Nm | 8.5 lbs | 49393 |
| 49305 | 5,500 kg | M36 x 4.00 | 36 mm | 63 mm | 48 mm | 25 mm | 52 mm | 172 mm | 131 mm | 76 mm | 69 mm | 1,085 Nm | 8.5 lbs | 49394 |
| 49306 | 8,500 kg | M36 x 4.00 | 45 mm | 102 mm | 55 mm | 32 mm | 56 mm | 226 mm | 159 mm | 96 mm | 88 mm | 1,085 Nm | 16 lbs | 49395 |
| 49307 | 9,000 kg | M39 x 4.00 | 45 mm | 99 mm | 55 mm | 32 mm | 56 mm | 226 mm | 159 mm | 96 mm | 88 mm | 1,085 Nm | 17 lbs | 49396 |
| 49308 | 9,250 kg | M42 x 4.50 | 45 mm | 96 mm | 55 mm | 32 mm | 66 mm | 226 mm | 159 mm | 96 mm | 88 mm | 1,085 Nm | 18 lbs | 49397 |
| 49309 | 9,500 kg | M45 x 4.50 | 45 mm | 93 mm | 55 mm | 32 mm | 66 mm | 226 mm | 159 mm | 96 mm | 88 mm | 1,085 Nm | 18 lbs | 49398 |
| 49310 | 9,500 kg | M46 x 5.00 | 45 mm | 90 mm | 55 mm | 32 mm | 66 mm | 226 mm | 159 mm | 96 mm | 88 mm | 1,085 Nm | 18 lbs | 49399 |
| 49311 | 10,000 kg | M48 x 5.00 | 45 mm | 90 mm | 55 mm | 32 mm | 66 mm | 226 mm | 159 mm | 96 mm | 88 mm | 1,085 Nm | 18 lbs | 49400 |
| 49312 | 14,500 kg | M52 x 5.00 | 58 mm | 151 mm | 77 mm | 44 mm | 83 mm | 325 mm | 212 mm | 124 mm | 120 mm | 1,085 Nm | 42 lbs | 49401 |
| 49313 | 15,500 kg | M56 x 5.50 | 58 mm | 147 mm | 77 mm | 44 mm | 83 mm | 325 mm | 212 mm | 124 mm | 120 mm | 1,085 Nm | 42 lbs | 49402 |
| 49314 | 16,500 kg | M64 x 6.00 | 58 mm | 139 mm | 77 mm | 44 mm | 93 mm | 325 mm | 212 mm | 124 mm | 120 mm | 2,847 Nm | 42 lbs | 49403 |
| 49315 | 24,500 kg | M72 x 6.00 | 76 mm | 187 mm | 110 mm | 57 mm | 100 mm | 427 mm | 272 mm | 166 mm | 151 mm | 5,830 Nm | 92 lbs | 49404 |
| 49316 | 26,500 kg | M80 x 6.00 | 76 mm | 179 mm | 110 mm | 57 mm | 110 mm | 427 mm | 272 mm | 166 mm | 151 mm | 5,830 Nm | 92 lbs | 49405 |
| 49318 | 33,000 kg | M100 x 6.00 | 95 mm | 216 mm | 216 mm | 70 mm | 151 mm | 508 mm | 359 mm | 206 mm | 165 mm | 6,914 Nm | 280 lbs | 49318-Stud |
| 49317 | 33,000 kg | M90 x 6.00 | 95 mm | 216 mm | 216 mm | 70 mm | 140 mm | 508 mm | 359 mm | 206 mm | 165 mm | 6,914 Nm | 280 lbs | 49317-Stud |
Features
- Units: Metric
- Type: Standard U-Bar
- Material: Alloy Steel
- Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
- Swivel Angle: 360°
- Pivot Angle: 180°
- Safety Factor: 5:1
