Actek | SKU:
Actek-41401
Actek Shoulder Eye Bolts (Inch)
$5.23
Unit price
/
Unavailable
Actek Shoulder Eye Bolts (Inch) - 500 lbs / 1/4" - 20 / c1030 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek Shoulder Eye Bolts (Inch)
From
$5.23
Unit price
/
Unavailable
Related Products:
Characteristics:

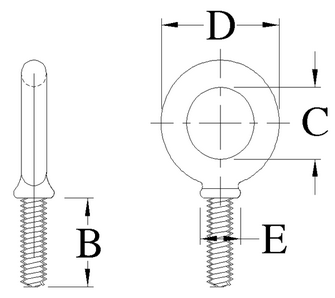

| Part Number | W.L.L. Vert 0 | Thread Size | Material | B | C | D | E |
|---|---|---|---|---|---|---|---|
| 41401 | 500 lbs | 1/4" - 20 | c1030 | 1 in | 3/4 in | 1 3/16 in | 17/32 in |
| 41403 | 900 lbs | 5/16" - 18 | c1030 | 1 1/8 in | 7/8 in | 1 7/16 in | 19/32 in |
| 41405 | 1,300 lbs | 3/8" - 16 | c1030 | 1 1/4 in | 1 in | 1 21/32 in | 11/16 in |
| 41407 | 1,800 lbs | 7/16" - 14 | c1030 | 1 3/8 in | 1 3/32 in | 1 27/32 in | 25/32 in |
| 41409 | 2,400 lbs | 1/2" - 13 | c1030 | 1 1/2 in | 1 3/16 in | 2 1/16 in | 7/8 in |
| 41411 | 3,000 lbs | 9/16" - 12 | c1030 | 1 5/8 in | 1 9/32 in | 2 9/32 in | 31/32 in |
| 41413 | 4,000 lbs | 5/8" - 11 | c1030 | 1 3/4 in | 1 3/8 in | 2 1/2 in | 1 1/16 in |
| 41415 | 5,000 lbs | 3/4" - 10 | c1030 | 2 in | 1 1/2 in | 2 13/16 in | 1 1/4 in |
| 41417 | 7,000 lbs | 7/8" - 9 | c1030 | 2 1/4 in | 1 11/16 in | 3 1/4 in | 1 7/16 in |
| 41419 | 9,000 lbs | 1" - 8 | c1030 | 2 1/2 in | 1 13/16 in | 3 9/16 in | 1 9/16 in |
| 41421 | 12,000 lbs | 1 1/8" - 7 | c1030 | 2 3/4 in | 2 in | 4 in | 1 11/16 in |
| 41423 | 15,000 lbs | 1 1/4" - 7 | c1030 | 3 in | 2 3/16 in | 4 7/16 in | 1 7/8 in |
| 41425 | 15,000 lbs | 1 3/8" - 6 | c1030 | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
| 41430 | 21,000 lbs | 1 1/2" - 6 | c1030 | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
| 41431 | 28,000 lbs | 1 3/4" - 5 | c1030 | 3 3/4 in | 2 7/8 in | 6 1/16 in | 2 1/2 in |
| 41433 | 38,000 lbs | 2" - 4 1/2 | c1030 | 4 in | 3 1/4 in | 6 7/8 in | 2 7/8 in |
| 41434 | 56,000 lbs | 2 1/2" - 4 | c1030 | 5 in | 4 in | 8 9/16 in | 3 3/4 in |
| 41401-SS | 500 lbs | 1/4" - 20 | 304 Stainless Steel | 1 in | 3/4 in | 1 3/16 in | 17/32 in |
| 41403-SS | 900 lbs | 5/16" - 18 | 304 Stainless Steel | 1 1/8 in | 7/8 in | 1 7/16 in | 19/32 in |
| 41405-SS | 1,300 lbs | 3/8" - 16 | 304 Stainless Steel | 1 1/4 in | 1 in | 1 21/32 in | 11/16 in |
| 41407-SS | 1,800 lbs | 7/16" - 14 | 304 Stainless Steel | 1 3/8 in | 1 3/32 in | 1 27/32 in | 25/32 in |
| 41409-SS | 2,400 lbs | 1/2" - 13 | 304 Stainless Steel | 1 1/2 in | 1 3/16 in | 2 1/16 in | 7/8 in |
| 41411-SS | 3,000 lbs | 9/16" - 12 | 304 Stainless Steel | 1 5/8 in | 1 9/32 in | 2 9/32 in | 31/32 in |
| 41413-SS | 4,000 lbs | 5/8" - 11 | 304 Stainless Steel | 1 3/4 in | 1 3/8 in | 2 1/2 in | 1 1/16 in |
| 41415-SS | 5,000 lbs | 3/4" - 10 | 304 Stainless Steel | 2 in | 1 1/2 in | 2 13/16 in | 1 1/4 in |
| 41417-SS | 7,000 lbs | 7/8" - 9 | 304 Stainless Steel | 2 1/4 in | 1 11/16 in | 3 1/4 in | 1 7/16 in |
| 41419-SS | 9,000 lbs | 1" - 8 | 304 Stainless Steel | 2 1/2 in | 1 13/16 in | 3 9/16 in | 1 9/16 in |
| 41421-SS | 12,000 lbs | 1 1/8" - 7 | 304 Stainless Steel | 2 3/4 in | 2 in | 4 in | 1 11/16 in |
| 41423-SS | 15,000 lbs | 1 1/4" - 7 | 304 Stainless Steel | 3 in | 2 3/16 in | 4 7/16 in | 1 7/8 in |
| 41425-SS | 15,000 lbs | 1 3/8" - 6 | 304 Stainless Steel | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
| 41430-SS | 21,000 lbs | 1 1/2" - 6 | 304 Stainless Steel | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
| 41431-SS | 28,000 lbs | 1 3/4" - 5 | 304 Stainless Steel | 3 3/4 in | 2 7/8 in | 6 1/16 in | 2 1/2 in |
| 41433-SS | 38,000 lbs | 2" - 4 1/2 | 304 Stainless Steel | 4 in | 3 1/4 in | 6 7/8 in | 2 7/8 in |
| 41434-SS | 56,000 lbs | 2 1/2" - 4 | 304 Stainless Steel | 5 in | 4 in | 8 9/16 in | 3 3/4 in |
| 41401-F | 500 lbs | 1/4" - 28 | c1030 | 1 in | 3/4 in | 1 3/16 in | 17/32 in |
| 41403-F | 900 lbs | 5/16" - 24 | c1030 | 1 1/8 in | 7/8 in | 1 7/16 in | 19/32 in |
| 41405-F | 1,300 lbs | 3/8" - 24 | c1030 | 1 1/4 in | 1 in | 1 21/32 in | 11/16 in |
| 41407-F | 1,800 lbs | 7/16" - 20 | c1030 | 1 3/8 in | 1 3/32 in | 1 27/32 in | 25/32 in |
| 41409-F | 2,400 lbs | 1/2" - 20 | c1030 | 1 1/2 in | 1 3/16 in | 2 1/16 in | 7/8 in |
| 41411-F | 3,000 lbs | 9/16" - 18 | c1030 | 1 5/8 in | 1 9/32 in | 2 9/32 in | 31/32 in |
| 41413-F | 4,000 lbs | 5/8" - 18 | c1030 | 1 3/4 in | 1 3/8 in | 2 1/2 in | 1 1/16 in |
| 41415-F | 5,000 lbs | 3/4" - 16 | c1030 | 2 in | 1 1/2 in | 2 13/16 in | 1 1/4 in |
| 41417-F | 7,000 lbs | 7/8" - 14 | c1030 | 2 1/4 in | 1 11/16 in | 3 1/4 in | 1 7/16 in |
| 41419-F | 9,000 lbs | 1" - 12 | c1030 | 2 1/2 in | 1 13/16 in | 3 9/16 in | 1 9/16 in |
| 41421-F | 12,000 lbs | 1 1/8" - 12 | c1030 | 2 3/4 in | 2 in | 4 in | 1 11/16 in |
| 41423-F | 15,000 lbs | 1 1/4" - 12 | c1030 | 3 in | 2 3/16 in | 4 7/16 in | 1 7/8 in |
| 41425-F | 15,000 lbs | 1 3/8" - 12 | c1030 | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
| 41430-F | 21,000 lbs | 1 1/2" - 12 | c1030 | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
| 41431-F | 28,000 lbs | 1 3/4" - 12 | c1030 | 3 3/4 in | 2 7/8 in | 6 1/16 in | 2 1/2 in |
| 41433-F | 38,000 lbs | 2" - 12 | c1030 | 4 in | 3 1/4 in | 6 7/8 in | 2 7/8 in |
| 41434-F | 56,000 lbs | 2 1/2" - 12 | c1030 | 5 in | 4 in | 8 9/16 in | 3 3/4 in |
| 41421-8 | 12,000 lbs | 1 1/8" - 8 | c1030 | 2 3/4 in | 2 in | 4 in | 1 11/16 in |
| 41423-8 | 15,000 lbs | 1 1/4" - 8 | c1030 | 3 in | 2 3/16 in | 4 7/16 in | 1 7/8 in |
| 41425-8 | 15,000 lbs | 1 3/8" - 8 | c1030 | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
| 41430-8 | 21,000 lbs | 1 1/2" - 8 | c1030 | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
| 41431-8 | 28,000 lbs | 1 3/4" - 8 | c1030 | 3 3/4 in | 2 7/8 in | 6 1/16 in | 2 1/2 in |
| 41433-8 | 38,000 lbs | 2" - 8 | c1030 | 4 in | 3 1/4 in | 6 7/8 in | 2 7/8 in |
| 41434-8 | 56,000 lbs | 2 1/2" - 8 | c1030 | 5 in | 4 in | 8 9/16 in | 3 3/4 in |
Features
- Units: Inch
- Finish: Plain or Black Oxide
