Actek | SKU:
Actek-41301
Actek Shoulder Eye Bolts (Metric)
$9.21
Unit price
/
Unavailable
Actek Shoulder Eye Bolts (Metric) - 210 kg / M6 x 1.0 / c1030 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek Shoulder Eye Bolts (Metric)
From
$9.21
Unit price
/
Unavailable
Related Products:
Characteristics:

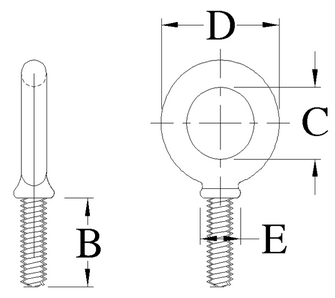

| Part Number | W.L.L. Vert 0 | Thread Size | Material | B | C | D | E |
|---|---|---|---|---|---|---|---|
| 41301 | 210 kg | M6 x 1.0 | c1030 | 1 in | 3/4 in | 1 3/16 in | 17/32 in |
| 41303 | 370 kg | M7 x 1.0 | c1030 | 1 1/8 in | 7/8 in | 1 7/16 in | 19/32 in |
| 41300 | 500 kg | M8 x 1.25 | c1030 | 1 1/4 in | 1 in | 1 21/32 in | 11/16 in |
| 41302 | 740 kg | M10 x 1.5 | c1030 | 1 3/8 in | 1 3/32 in | 1 27/32 in | 25/32 in |
| 41304 | 1,030 kg | M12 x 1.75 | c1030 | 1 1/2 in | 1 3/16 in | 2 1/16 in | 7/8 in |
| 41306 | 1,600 kg | M14 x 2.0 | c1030 | 1 5/8 in | 1 9/32 in | 2 9/32 in | 31/32 in |
| 41308 | 1,600 kg | M16 x 2.0 | c1030 | 1 3/4 in | 1 3/8 in | 2 1/2 in | 1 1/16 in |
| 41310 | 2,140 kg | M18 x 2.5 | c1030 | 2 in | 1 1/2 in | 2 13/16 in | 1 1/4 in |
| 41312 | 2,860 kg | M20 x 2.5 | c1030 | 2 1/4 in | 1 11/16 in | 3 1/4 in | 1 7/16 in |
| 41314 | 2,860 kg | M22 x 2.5 | c1030 | 2 1/4 in | 1 11/16 in | 3 1/4 in | 1 7/16 in |
| 41316 | 3,850 kg | M24 x 3.0 | c1030 | 2 1/2 in | 1 13/16 in | 3 9/16 in | 1 9/16 in |
| 41318 | 5,200 kg | M27 x 3.0 | c1030 | 2 3/4 in | 2 in | 4 in | 1 11/16 in |
| 41320 | 6,400 kg | M30 x 3.5 | c1030 | 3 in | 2 3/16 in | 4 7/16 in | 1 7/8 in |
| 41321 | 6,400 kg | M33 x 3.5 | c1030 | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
| 41322 | 8,970 kg | M36 x 4.0 | c1030 | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
| 41324 | 11,960 kg | M42 x 4.5 | c1030 | 3 3/4 in | 2 7/8 in | 6 1/16 in | 2 1/2 in |
| 41326 | 12,720 kg | M45 x 4.5 | c1030 | 3 3/4 in | 2 7/8 in | 6 1/16 in | 2 1/2 in |
| 41328 | 16,400 kg | M48 x 5.0 | c1030 | 4 in | 3 1/4 in | 6 7/8 in | 2 7/8 in |
| 41330 | 17,300 kg | M52 x 5.0 | c1030 | 4 in | 3 1/4 in | 6 7/8 in | 2 7/8 in |
| 41332 | 17,300 kg | M56 x 5.50 | c1030 | 5 in | 4 in | 8 9/16 in | 3 3/4 in |
| 41335 | 24,458 kg | M64 x 6.0 | c1030 | 5 in | 4 in | 8 9/16 in | 3 3/4 in |
| 41300-F | 500 kg | M8 x 1.00 | c1030 | 1 1/4 in | 1 in | 1 21/32 in | 11/16 in |
| 41302-F | 740 kg | M10 x 1.25 | c1030 | 1 3/8 in | 1 3/32 in | 1 27/32 in | 25/32 in |
| 41310-F | 2,140 kg | M18 x 1.50 | c1030 | 2 in | 1 1/2 in | 2 13/16 in | 1 1/4 in |
| 41312-F | 2,860 kg | M20 x 2.00 | c1030 | 2 1/4 in | 1 11/16 in | 3 1/4 in | 1 7/16 in |
| 41316-F | 3,850 kg | M24 x 2.00 | c1030 | 2 1/2 in | 1 13/16 in | 3 9/16 in | 1 9/16 in |
| 41322-F | 8,970 kg | M36 x 3.00 | c1030 | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
| 41332-F | 17,300 kg | M56 x 4.00 | c1030 | 5 in | 4 in | 8 9/16 in | 3 3/4 in |
Features
- Units: Metric
- Finish: Plain or Black Oxide
