Actek | SKU:
Actek-58644
Actek Stainless Steel Safety Hoist Rings (Inch, Long U-Bar)
$394.37
Unit price
/
Unavailable
Actek Stainless Steel Safety Hoist Rings (Inch, Long U-Bar) - 1,250 lbs / 1/2" - 13 / 0.78 in is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek Stainless Steel Safety Hoist Rings (Inch, Long U-Bar)
From
$394.37
Unit price
/
Unavailable
Related Products:
- Actek Stainless Steel Safety Hoist Rings (Metric, Standard U-Bar)
- Actek Stainless Steel Safety Hoist Rings (Metric, Long U-Bar)
- Actek Stainless Steel Safety Hoist Rings (Inch, Standard U-Bar)
Characteristics:

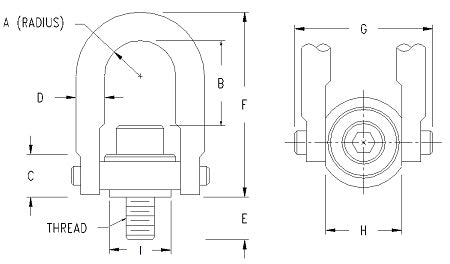

| Part Number | Rated Load | Thread Size | A | B | C | D | E | F | G | H | I | Torque | Weight | Replacement Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 58644 | 1,250 lbs | 1/2" - 13 | 0.92 in | 4.36 in | 1.23 in | 3/4 in | 0.78 in | 6.83 in | 3.66 in | 1.98 in | 1.45 in | 14 ft-lbs | 2.6 lbs | 58048 |
| 58646 | 1,250 lbs | 1/2" - 13 | 0.92 in | 4.36 in | 1.23 in | 3/4 in | 1.03 in | 6.83 in | 3.66 in | 1.98 in | 1.45 in | 14 ft-lbs | 2.6 lbs | 58050 |
| 58648 | 1,250 lbs | 1/2" - 13 | 0.92 in | 4.36 in | 1.23 in | 3/4 in | 1.28 in | 6.83 in | 3.66 in | 1.98 in | 1.45 in | 14 ft-lbs | 2.6 lbs | 58052 |
| 58641 | 2,000 lbs | 5/8" - 11 | 0.92 in | 4.23 in | 1.23 in | 3/4 in | 0.78 in | 6.83 in | 3.66 in | 1.98 in | 1.45 in | 30 ft-lbs | 2.6 lbs | 58056 |
| 58640 | 2,000 lbs | 5/8" - 11 | 0.92 in | 4.23 in | 1.23 in | 3/4 in | 1.03 in | 6.83 in | 3.66 in | 1.98 in | 1.45 in | 30 ft-lbs | 2.6 lbs | 58044 |
| 58642 | 2,000 lbs | 5/8" - 11 | 0.92 in | 4.23 in | 1.23 in | 3/4 in | 1.28 in | 6.83 in | 3.66 in | 1.98 in | 1.45 in | 30 ft-lbs | 2.6 lbs | 58046 |
| 58650 | 2,500 lbs | 3/4" - 10 | 0.92 in | 4.11 in | 1.23 in | 3/4 in | 1.03 in | 6.83 in | 3.66 in | 1.98 in | 1.45 in | 50 ft-lbs | 3 lbs | 58054 |
| 58654 | 2,500 lbs | 3/4" - 10 | 0.92 in | 4.11 in | 1.23 in | 3/4 in | 1.53 in | 6.83 in | 3.66 in | 1.98 in | 1.45 in | 50 ft-lbs | 3 lbs | 58058 |
| 58658 | 3,500 lbs | 3/4" - 10 | 1.41 in | 4.73 in | 1.71 in | 1 in | 1.04 in | 8.19 in | 5.16 in | 3 in | 2.2 in | 50 ft-lbs | 7 lbs | 58244 |
| 58660 | 3,500 lbs | 3/4" - 10 | 1.41 in | 4.73 in | 1.71 in | 1 in | 1.54 in | 8.19 in | 5.16 in | 3 in | 2.2 in | 50 ft-lbs | 7 lbs | 58246 |
| 58656 | 4,000 lbs | 7/8" - 9 | 1.41 in | 4.61 in | 1.71 in | 1 in | 1.04 in | 8.19 in | 5.16 in | 3 in | 2.2 in | 80 ft-lbs | 7 lbs | 58242 |
| 58652 | 4,000 lbs | 7/8" - 9 | 1.41 in | 4.61 in | 1.71 in | 1 in | 1.29 in | 8.19 in | 5.16 in | 3 in | 2.2 in | 80 ft-lbs | 7 lbs | 58243 |
| 58662 | 5,000 lbs | 1" - 8 | 1.41 in | 4.48 in | 1.71 in | 1 in | 1.29 in | 8.19 in | 5.16 in | 3 in | 2.2 in | 115 ft-lbs | 7.5 lbs | 58250 |
| 58664 | 5,000 lbs | 1" - 8 | 1.41 in | 4.48 in | 1.71 in | 1 in | 1.54 in | 8.19 in | 5.16 in | 3 in | 2.2 in | 115 ft-lbs | 7.5 lbs | 58252 |
| 58666 | 5,000 lbs | 1" - 8 | 1.41 in | 4.48 in | 1.71 in | 1 in | 2.29 in | 8.19 in | 5.16 in | 3 in | 2.2 in | 115 ft-lbs | 7.5 lbs | 58254 |
Features
- Units: Inch
- Type: Long U-Bar
- SwivelAngle: 360°
- PivotAngle: 180°
- Material: 316 Stainless Steel
- Inspection: Liquid Penetrant Inspected
- Safety Factor: 5:1
