Actek  |  SKU: Actek-58100

Actek Stainless Steel Safety Hoist Rings (Inch, Standard U-Bar)

$279.77

Related Products:

Characteristics:

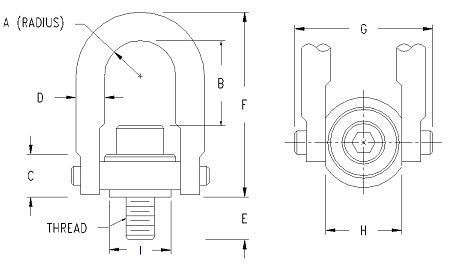

Part Number Rated Load Thread Size A B C D E F G H I Torque Weight Replacement Screw
58100 300 lbs 1/4"-20 0.47 in 1.39 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 3 ft-lbs 0.3 lbs 58139
58102 400 lbs 5/16" - 18 0.47 in 1.32 in 0.71 in 3/8 in 0.29 in 2.72 in 1.91 in 1 in 0.85 in 3.5 ft-lbs 0.3 lbs 58142
58104 400 lbs 5/16" - 18 0.47 in 1.32 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 3.5 ft-lbs 0.3 lbs 58144
58106 500 lbs 3/8" - 16 0.47 in 1.26 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 6 ft-lbs 0.3 lbs 58146
58602 1,250 lbs 1/2" - 13 0.71 in 1.88 in 0.93 in 1/2 in 1.07 in 3.81 in 2.66 in 1.49 in 1.20 in 14 ft-lbs 1 lbs 58636
58008 1,250 lbs 1/2" - 13 0.92 in 2.46 in 1.23 in 3/4 in 0.78 in 4.93 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs 58048
58010 1,250 lbs 1/2" - 13 0.92 in 2.46 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs 58050
58012 1,250 lbs 1/2" - 13 0.92 in 2.46 in 1.23 in 3/4 in 1.28 in 4.93 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs 58052
58002 2,000 lbs 5/8" - 11 0.92 in 2.33 in 1.23 in 3/4 in 0.78 in 4.93 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs 58056
58004 2,000 lbs 5/8" - 11 0.92 in 2.33 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs 58044
58006 2,000 lbs 5/8" - 11 0.92 in 2.33 in 1.23 in 3/4 in 1.28 in 4.93 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs 58046
58014 2,500 lbs 3/4" - 10 0.92 in 2.21 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 50 ft-lbs 3 lbs 58054
58018 2,500 lbs 3/4" - 10 0.92 in 2.21 in 1.23 in 3/4 in 1.53 in 4.93 in 3.66 in 1.98 in 1.45 in 50 ft-lbs 3 lbs 58058
58204 3,500 lbs 3/4" - 10 1.41 in 3.14 in 1.71 in 1 in 1.04 in 6.60 in 5.16 in 2.99 in 2.20 in 50 ft-lbs 7 lbs 58244
58206 3,500 lbs 3/4" - 10 1.41 in 3.14 in 1.71 in 1 in 1.54 in 6.60 in 5.16 in 2.99 in 2.20 in 50 ft-lbs 7 lbs 58246
58202 4,000 lbs 7/8" - 9 1.41 in 3.02 in 1.71 in 1 in 1.04 in 6.60 in 5.16 in 2.99 in 2.20 in 80 ft-lbs 7 lbs 58242
58203 4,000 lbs 7/8" - 9 1.41 in 3.02 in 1.71 in 1 in 1.29 in 6.60 in 5.16 in 2.99 in 2.20 in 80 ft-lbs 7 lbs 58243
58210 5,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 1.29 in 6.60 in 5.16 in 2.99 in 2.20 in 115 ft-lbs 7.5 lbs 58250
58212 5,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 1.54 in 6.60 in 5.16 in 2.99 in 2.20 in 115 ft-lbs 7.5 lbs 58252
58214 5,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 2.29 in 6.60 in 5.16 in 2.99 in 2.20 in 115 ft-lbs 7.5 lbs 58254
58802 7,500 lbs 1 1/4" - 7 1.76 in 4.20 in 2.12 in 1 1/4 in 1.89 in 8.82 in 6.26 in 3.76 in 3.20 in 235 ft-lbs 14 lbs 58842
58404 12,000 lbs 1 1/2" - 6 2.27 in 6.50 in 2.81 in 1 3/4 in 2.70 in 12.56 in 8.34 in 4.87 in 4.15 in 400 ft-lbs 34 lbs 58444
58400 15,000 lbs 2" - 4 1/2 2.27 in 6.00 in 2.81 in 1 3/4 in 2.96 in 12.56 in 8.34 in 4.87 in 4.15 in 400 ft-lbs 36 lbs 58450
59002 25,000 lbs 2 1/2" - 8 3 in 7.71 in 4.10 in 2 1/4 in 4 in 16.56 in 10.72 in 6.52 in 5.40 in 1,050 ft-lbs 88 lbs 59052
59006 25,000 lbs 2 1/2" - 4 3 in 7.71 in 4.10 in 2 1/4 in 4 in 16.56 in 10.72 in 6.52 in 5.40 in 1,050 ft-lbs 88 lbs 59056

Features

  • Units: Inch
  • Type: Standard U-Bar
  • SwivelAngle: 360°
  • PivotAngle: 180°
  • Material: 316 Stainless Steel
  • Inspection: Liquid Penetrant Inspected
  • Safety Factor: 5:1
Actek Stainless Steel Safety Hoist Rings (Inch, Standard U-Bar)
Actek

Actek Stainless Steel Safety Hoist Rings (Inch, Standard U-Bar)

From $264.89

Related Products:

Characteristics:

Part Number Rated Load Thread Size A B C D E F G H I Torque Weight Replacement Screw
58100 300 lbs 1/4"-20 0.47 in 1.39 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 3 ft-lbs 0.3 lbs 58139
58102 400 lbs 5/16" - 18 0.47 in 1.32 in 0.71 in 3/8 in 0.29 in 2.72 in 1.91 in 1 in 0.85 in 3.5 ft-lbs 0.3 lbs 58142
58104 400 lbs 5/16" - 18 0.47 in 1.32 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 3.5 ft-lbs 0.3 lbs 58144
58106 500 lbs 3/8" - 16 0.47 in 1.26 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 6 ft-lbs 0.3 lbs 58146
58602 1,250 lbs 1/2" - 13 0.71 in 1.88 in 0.93 in 1/2 in 1.07 in 3.81 in 2.66 in 1.49 in 1.20 in 14 ft-lbs 1 lbs 58636
58008 1,250 lbs 1/2" - 13 0.92 in 2.46 in 1.23 in 3/4 in 0.78 in 4.93 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs 58048
58010 1,250 lbs 1/2" - 13 0.92 in 2.46 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs 58050
58012 1,250 lbs 1/2" - 13 0.92 in 2.46 in 1.23 in 3/4 in 1.28 in 4.93 in 3.66 in 1.98 in 1.45 in 14 ft-lbs 2.6 lbs 58052
58002 2,000 lbs 5/8" - 11 0.92 in 2.33 in 1.23 in 3/4 in 0.78 in 4.93 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs 58056
58004 2,000 lbs 5/8" - 11 0.92 in 2.33 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs 58044
58006 2,000 lbs 5/8" - 11 0.92 in 2.33 in 1.23 in 3/4 in 1.28 in 4.93 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs 58046
58014 2,500 lbs 3/4" - 10 0.92 in 2.21 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 50 ft-lbs 3 lbs 58054
58018 2,500 lbs 3/4" - 10 0.92 in 2.21 in 1.23 in 3/4 in 1.53 in 4.93 in 3.66 in 1.98 in 1.45 in 50 ft-lbs 3 lbs 58058
58204 3,500 lbs 3/4" - 10 1.41 in 3.14 in 1.71 in 1 in 1.04 in 6.60 in 5.16 in 2.99 in 2.20 in 50 ft-lbs 7 lbs 58244
58206 3,500 lbs 3/4" - 10 1.41 in 3.14 in 1.71 in 1 in 1.54 in 6.60 in 5.16 in 2.99 in 2.20 in 50 ft-lbs 7 lbs 58246
58202 4,000 lbs 7/8" - 9 1.41 in 3.02 in 1.71 in 1 in 1.04 in 6.60 in 5.16 in 2.99 in 2.20 in 80 ft-lbs 7 lbs 58242
58203 4,000 lbs 7/8" - 9 1.41 in 3.02 in 1.71 in 1 in 1.29 in 6.60 in 5.16 in 2.99 in 2.20 in 80 ft-lbs 7 lbs 58243
58210 5,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 1.29 in 6.60 in 5.16 in 2.99 in 2.20 in 115 ft-lbs 7.5 lbs 58250
58212 5,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 1.54 in 6.60 in 5.16 in 2.99 in 2.20 in 115 ft-lbs 7.5 lbs 58252
58214 5,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 2.29 in 6.60 in 5.16 in 2.99 in 2.20 in 115 ft-lbs 7.5 lbs 58254
58802 7,500 lbs 1 1/4" - 7 1.76 in 4.20 in 2.12 in 1 1/4 in 1.89 in 8.82 in 6.26 in 3.76 in 3.20 in 235 ft-lbs 14 lbs 58842
58404 12,000 lbs 1 1/2" - 6 2.27 in 6.50 in 2.81 in 1 3/4 in 2.70 in 12.56 in 8.34 in 4.87 in 4.15 in 400 ft-lbs 34 lbs 58444
58400 15,000 lbs 2" - 4 1/2 2.27 in 6.00 in 2.81 in 1 3/4 in 2.96 in 12.56 in 8.34 in 4.87 in 4.15 in 400 ft-lbs 36 lbs 58450
59002 25,000 lbs 2 1/2" - 8 3 in 7.71 in 4.10 in 2 1/4 in 4 in 16.56 in 10.72 in 6.52 in 5.40 in 1,050 ft-lbs 88 lbs 59052
59006 25,000 lbs 2 1/2" - 4 3 in 7.71 in 4.10 in 2 1/4 in 4 in 16.56 in 10.72 in 6.52 in 5.40 in 1,050 ft-lbs 88 lbs 59056

Features

Rated Load

  • 300 lbs
  • 400 lbs
  • 500 lbs
  • 1,250 lbs
  • 2,000 lbs
  • 2,500 lbs
  • 3,500 lbs
  • 4,000 lbs
  • 5,000 lbs
  • 7,500 lbs
  • 12,000 lbs
  • 15,000 lbs
  • 25,000 lbs

Thread Size

  • 1/4"-20
  • 5/16" - 18
  • 3/8" - 16
  • 1/2" - 13
  • 5/8" - 11
  • 3/4" - 10
  • 7/8" - 9
  • 1" - 8
  • 1 1/4" - 7
  • 1 1/2" - 6
  • 2" - 4 1/2
  • 2 1/2" - 8
  • 2 1/2" - 4

Thread Protrusion

  • 0.54 in
  • 0.29 in
  • 1.07 in
  • 0.78 in
  • 1.03 in
  • 1.28 in
  • 1.53 in
  • 1.04 in
  • 1.54 in
  • 1.29 in
  • 2.29 in
  • 1.89 in
  • 2.70 in
  • 2.96 in
  • 4 in
View product
