Actek | SKU: Actek-59124

Actek Stainless Steel Safety Hoist Rings (Metric, Long U-Bar)

Name: Actek Stainless Steel Safety Hoist Rings (Metric, Long U-Bar)
Brand: Actek
SKU: Actek-59124
Price: 414.09 USD
Availability: InStock

$414.09

Related Products:

Characteristics:

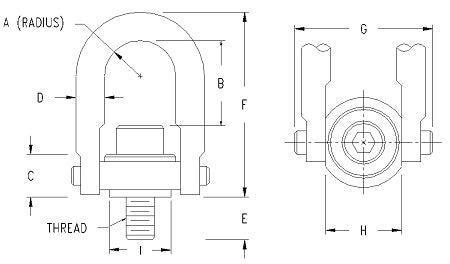

Part Number	Rated Load	Thread Size	A	B	C	D	E	F	G	H	I	Torque	Weight	Replacement Screw
59124	525 kg	M12 x 1.75	23 mm	111 mm	31 mm	19 mm	19 mm	174 mm	93 mm	50 mm	37 mm	18 Nm	2.5 lbs	59048
59130	950 kg	M16 x 2.00	23 mm	107 mm	31 mm	19 mm	29 mm	174 mm	93 mm	50 mm	37 mm	40 Nm	2.5 lbs	59057
59136	1,075 kg	M20 x 2.50	23 mm	103 mm	31 mm	19 mm	34 mm	174 mm	93 mm	50 mm	37 mm	68 Nm	2.5 lbs	59054
59142	1,500 kg	M20 x 2.50	36 mm	119 mm	43 mm	25 mm	32 mm	208 mm	131 mm	76 mm	56 mm	68 Nm	7 lbs	59244
59148	2,100 kg	M24 x 3.00	36 mm	115 mm	43 mm	25 mm	37 mm	208 mm	131 mm	76 mm	56 mm	108 Nm	7 lbs	59250
58950	2,100 kg	M30 x 3.50	36 mm	109 mm	43 mm	25 mm	58 mm	208 mm	131 mm	76 mm	56 mm	108 Nm	7 lbs	59242

Features

Units: Metric
Type: Long U-Bar
SwivelAngle: 360°
PivotAngle: 180°
Material: 316 Stainless Steel
Inspection: Liquid Penetrant Inspected
Safety Factor: 5:1

Part Number

Rated Load

Thread Size

Torque

Weight

Replacement Screw

59124

525 kg

M12 x 1.75

23 mm

111 mm

31 mm

19 mm

174 mm

93 mm

50 mm

37 mm

18 Nm

2.5 lbs

59048

59130

950 kg

M16 x 2.00

23 mm

107 mm

31 mm

19 mm

29 mm

174 mm

93 mm

50 mm

37 mm

40 Nm

2.5 lbs

59057

59136

1,075 kg

M20 x 2.50

23 mm

103 mm

31 mm

19 mm

34 mm

174 mm

93 mm

50 mm

37 mm

68 Nm

2.5 lbs

59054

59142

1,500 kg

M20 x 2.50

36 mm

119 mm

43 mm

25 mm

32 mm

208 mm

131 mm

76 mm

56 mm

68 Nm

7 lbs

59244

59148

2,100 kg

M24 x 3.00

36 mm

115 mm

43 mm

25 mm

37 mm

208 mm

131 mm

76 mm

56 mm

108 Nm

7 lbs

59250

58950

2,100 kg

M30 x 3.50

36 mm

109 mm

43 mm

25 mm

58 mm

208 mm

131 mm

76 mm

56 mm

108 Nm

7 lbs

59242
