Actek  |  SKU: Actek-58912

Actek Stainless Steel Safety Hoist Rings (Metric, Standard U-Bar)

$278.14

Related Products:

Characteristics:

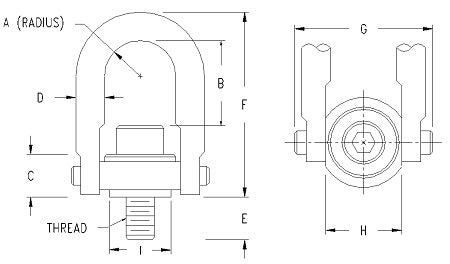

Part Number Rated Load Thread Size A B C D E F G H I Torque Weight Replacement Screw
58912 200 kg M8 x 1.25 12 mm 33 mm 18 mm 10 mm 13 mm 69 mm 49 mm 25 mm 22 mm 4 Nm 0.4 lbs 59143
58916 250 kg M10 x 1.50 12 mm 31 mm 18 mm 10 mm 18 mm 69 mm 49 mm 25 mm 22 mm 8 Nm 0.4 lbs 59146
58924 525 kg M12 x 1.75 23 mm 63 mm 31 mm 19 mm 19 mm 125 mm 93 mm 50 mm 37 mm 18 Nm 2.5 lbs 59048
58930 950 kg M16 x 2.00 23 mm 59 mm 31 mm 19 mm 29 mm 125 mm 93 mm 50 mm 37 mm 40 Nm 2.5 lbs 59057
58936 1,075 kg M20 x 2.50 23 mm 55 mm 31 mm 19 mm 34 mm 125 mm 93 mm 50 mm 37 mm 68 Nm 2.5 lbs 59054
58942 1,500 kg M20 x 2.50 36 mm 79 mm 43 mm 25 mm 32 mm 168 mm 131 mm 76 mm 56 mm 68 Nm 7 lbs 59244
58948 2,100 kg M24 x 3.00 36 mm 75 mm 43 mm 25 mm 37 mm 168 mm 131 mm 76 mm 56 mm 108 Nm 7 lbs 59250
58956 3,500 kg M30 x 3.50 45 mm 108 mm 54 mm 32 mm 42 mm 224 mm 159 mm 96 mm 81 mm 318 Nm 15 lbs 59842
58958 3,500 kg M30 x 3.50 45 mm 108 mm 54 mm 32 mm 62 mm 224 mm 159 mm 96 mm 81 mm 318 Nm 15 lbs 59846
58966 5,500 kg M36 x 4.00 58 mm 167 mm 71 mm 44 mm 64 mm 319 mm 212 mm 124 mm 105 mm 542 Nm 35 lbs 59344
58968 6,250 kg M42 x 4.50 58 mm 161 mm 71 mm 44 mm 82 mm 319 mm 212 mm 124 mm 105 mm 542 Nm 36 lbs 59444
58970 6,750 kg M48 x 5.00 58 mm 155 mm 71 mm 44 mm 82 mm 319 mm 212 mm 124 mm 105 mm 542 Nm 38 lbs 59450

Features

  • Units: Metric
  • Type: Standard U-Bar
  • SwivelAngle: 360°
  • PivotAngle: 180°
  • Material: 316 Stainless Steel
  • Inspection: Liquid Penetrant Inspected
  • Safety Factor: 5:1
Actek Stainless Steel Safety Hoist Rings (Metric, Standard U-Bar)
Actek

Actek Stainless Steel Safety Hoist Rings (Metric, Standard U-Bar)

From $278.14

Related Products:

Characteristics:

Part Number Rated Load Thread Size A B C D E F G H I Torque Weight Replacement Screw
58912 200 kg M8 x 1.25 12 mm 33 mm 18 mm 10 mm 13 mm 69 mm 49 mm 25 mm 22 mm 4 Nm 0.4 lbs 59143
58916 250 kg M10 x 1.50 12 mm 31 mm 18 mm 10 mm 18 mm 69 mm 49 mm 25 mm 22 mm 8 Nm 0.4 lbs 59146
58924 525 kg M12 x 1.75 23 mm 63 mm 31 mm 19 mm 19 mm 125 mm 93 mm 50 mm 37 mm 18 Nm 2.5 lbs 59048
58930 950 kg M16 x 2.00 23 mm 59 mm 31 mm 19 mm 29 mm 125 mm 93 mm 50 mm 37 mm 40 Nm 2.5 lbs 59057
58936 1,075 kg M20 x 2.50 23 mm 55 mm 31 mm 19 mm 34 mm 125 mm 93 mm 50 mm 37 mm 68 Nm 2.5 lbs 59054
58942 1,500 kg M20 x 2.50 36 mm 79 mm 43 mm 25 mm 32 mm 168 mm 131 mm 76 mm 56 mm 68 Nm 7 lbs 59244
58948 2,100 kg M24 x 3.00 36 mm 75 mm 43 mm 25 mm 37 mm 168 mm 131 mm 76 mm 56 mm 108 Nm 7 lbs 59250
58956 3,500 kg M30 x 3.50 45 mm 108 mm 54 mm 32 mm 42 mm 224 mm 159 mm 96 mm 81 mm 318 Nm 15 lbs 59842
58958 3,500 kg M30 x 3.50 45 mm 108 mm 54 mm 32 mm 62 mm 224 mm 159 mm 96 mm 81 mm 318 Nm 15 lbs 59846
58966 5,500 kg M36 x 4.00 58 mm 167 mm 71 mm 44 mm 64 mm 319 mm 212 mm 124 mm 105 mm 542 Nm 35 lbs 59344
58968 6,250 kg M42 x 4.50 58 mm 161 mm 71 mm 44 mm 82 mm 319 mm 212 mm 124 mm 105 mm 542 Nm 36 lbs 59444
58970 6,750 kg M48 x 5.00 58 mm 155 mm 71 mm 44 mm 82 mm 319 mm 212 mm 124 mm 105 mm 542 Nm 38 lbs 59450

Features

Rated Load

  • 200 kg
  • 250 kg
  • 525 kg
  • 950 kg
  • 1,075 kg
  • 1,500 kg
  • 2,100 kg
  • 3,500 kg
  • 5,500 kg
  • 6,250 kg
  • 6,750 kg

Thread Size

  • M8 x 1.25
  • M10 x 1.50
  • M12 x 1.75
  • M16 x 2.00
  • M20 x 2.50
  • M24 x 3.00
  • M30 x 3.50
  • M36 x 4.00
  • M42 x 4.50
  • M48 x 5.00

Thread Protrusion

  • 13 mm
  • 18 mm
  • 19 mm
  • 29 mm
  • 34 mm
  • 32 mm
  • 37 mm
  • 42 mm
  • 62 mm
  • 64 mm
  • 82 mm
