Actek | SKU:
Actek-44654-W
Actek Weld-On Round Base Swivel & Pivot Hoist Ring
$187.13
Unit price
/
Unavailable
Actek Weld-On Round Base Swivel & Pivot Hoist Ring - 5,000 lbs is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek Weld-On Round Base Swivel & Pivot Hoist Ring
From
$187.13
Unit price
/
Unavailable
Characteristics:

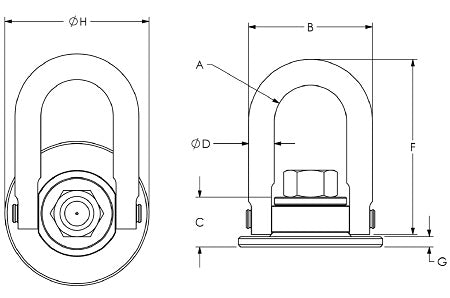

| Part Number | Rated Load | A | B | C | D | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 44654-W | 5,000 lbs | 0.92 in | 3 21/64 in | 1 7/32 in | 3/4 in | 6 3/4 in | 1/4 in | 3 1/2 in |
| 44666-W | 10,000 lbs | 1.40 in | 4 13/16 in | 1 37/64 in | 1 in | 8 in | 13/32 in | 5 in |
| 44803-W | 15,000 lbs | 1.75 in | 6 in | 1 55/64 in | 1 1/4 in | 8 1/2 in | 1/2 in | 7 in |
| 44704-W | 20,000 lbs | 2.00 in | 7 in | 2 7/64 in | 1 1/2 in | 10 11/32 in | 1/2 in | 7 in |
| 44408-W | 30,000 lbs | 2.25 in | 8 in | 2 17/32 in | 1 3/4 in | 12 5/32 in | 11/16 in | 8 1/2 in |
Features
- Material: Alloy Steel
- Finish: Black Oxide|Cadmium Plated
- Swivel Angle: 360°
- Pivot Angle: 180°
- Safety Factor: 5:1
