Miller | SKU:
Miller-B-215

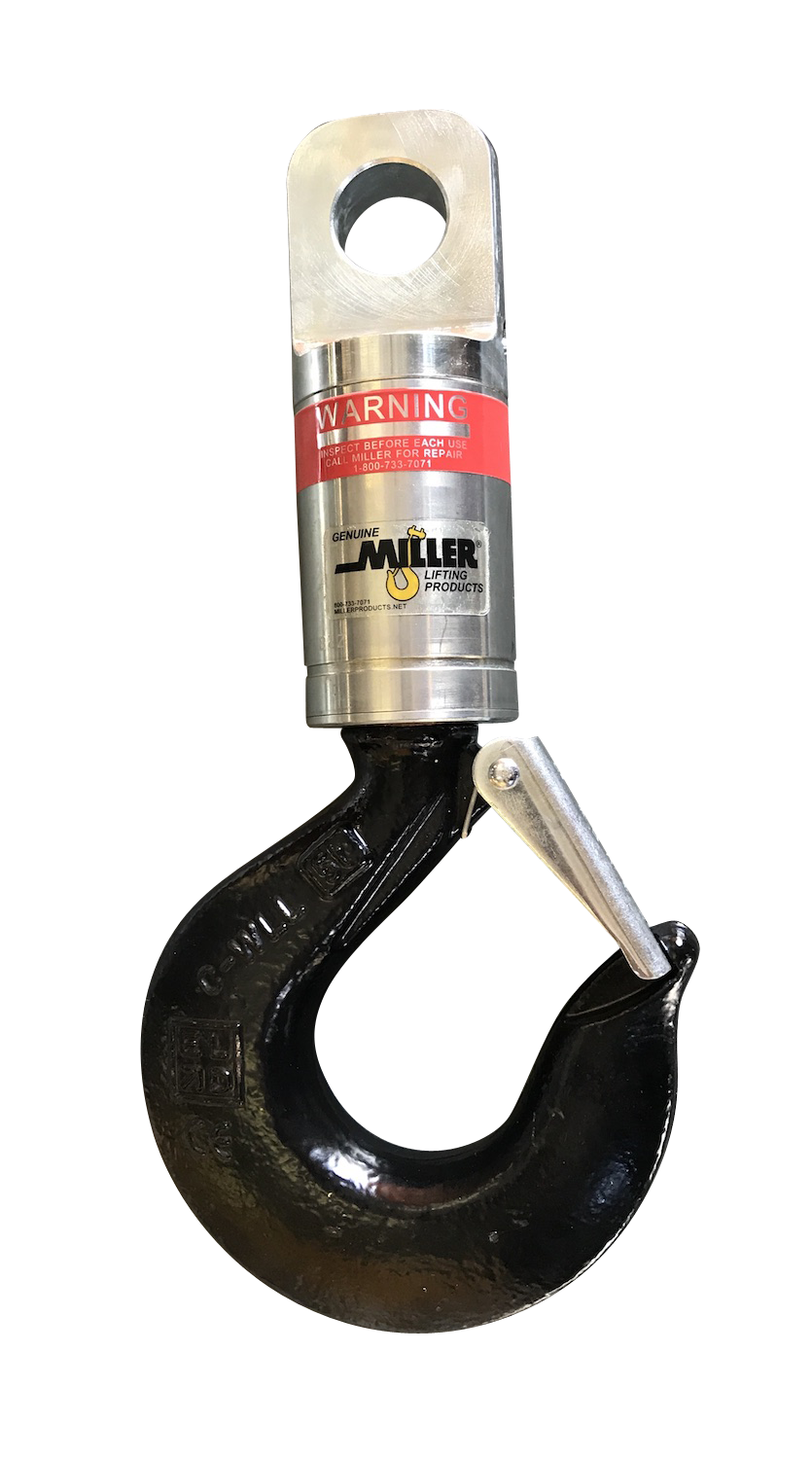

Miller Angular Contact Ball Bearing Swivel (Eye to Hook)
$620.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Eye to Hook) - WLL 1.5 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Eye to Hook)
From
$620.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| B-215 | 1.5 tons | 7.9 | 3.6 | 1.6 | 2.3 |
| C-215 | 3 tons | 10.9 | 4.9 | 2 | 5.8 |
| D-215 | 5 tons | 14 | 6.5 | 2.5 | 11.4 |
| EE-215 | 8.5 tons | 17.6 | 8.7 | 2.9 | 23.8 |
| G-215 | 10 tons | 22.5 | 11 | 4 | 52 |
| GG-215 | 15 tons | 22.6 | 11 | 4 | 52 |
| H-215 | 25 tons | 29.5 | 12 | 5 | 128 |
| HH-215 | 35 tons | 29.5 | 12 | 5 | 128 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Eye Hole Dia. | Eye Tang Thickness | Eye Center to Hook Seat | Hook Opening |
|---|---|---|---|---|---|---|---|
| B-215 | 1.5 | 3/8" | 7.8" | 0.66" | 0.50" | 6.19" | 1.00" |
| C-215 | 3 | 1/2" | 10.9" | 0.91" | 0.75" | 8.56" | 1.34" |
| D-215 | 5 | 5/8" | 13.9" | 1.28" | 1.00" | 10.88" | 1.69 |
| EE-215 | 8.5 | 3/4" | 17.7" | 1.41" | 1.25" | 13.63" | 2.25" |
| G-215 | 10 | 7/8" | 22.6" | 1.66" | 1.72" | 17.81" | 3.00" |
| GG-215 | 15 | 1" | 22.7" | 2.03" | 1.94" | 17.56" | 3.00" |
| H-215 | 25 | 1 1/4" | 29.6" | 2.31" | 2.25" | 23.01" | 3.54" |
| HH-215 | 35 | 1 1/2" | 29.6" | 2.31" | 2.25" | 23.01" | 3.54" |
Features
- Eye to Hook
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- B, C - Factory-lubricated, no grease fitting
- D, EE, G, GG, H, HH - Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
