Miller | SKU:
Miller-B-115

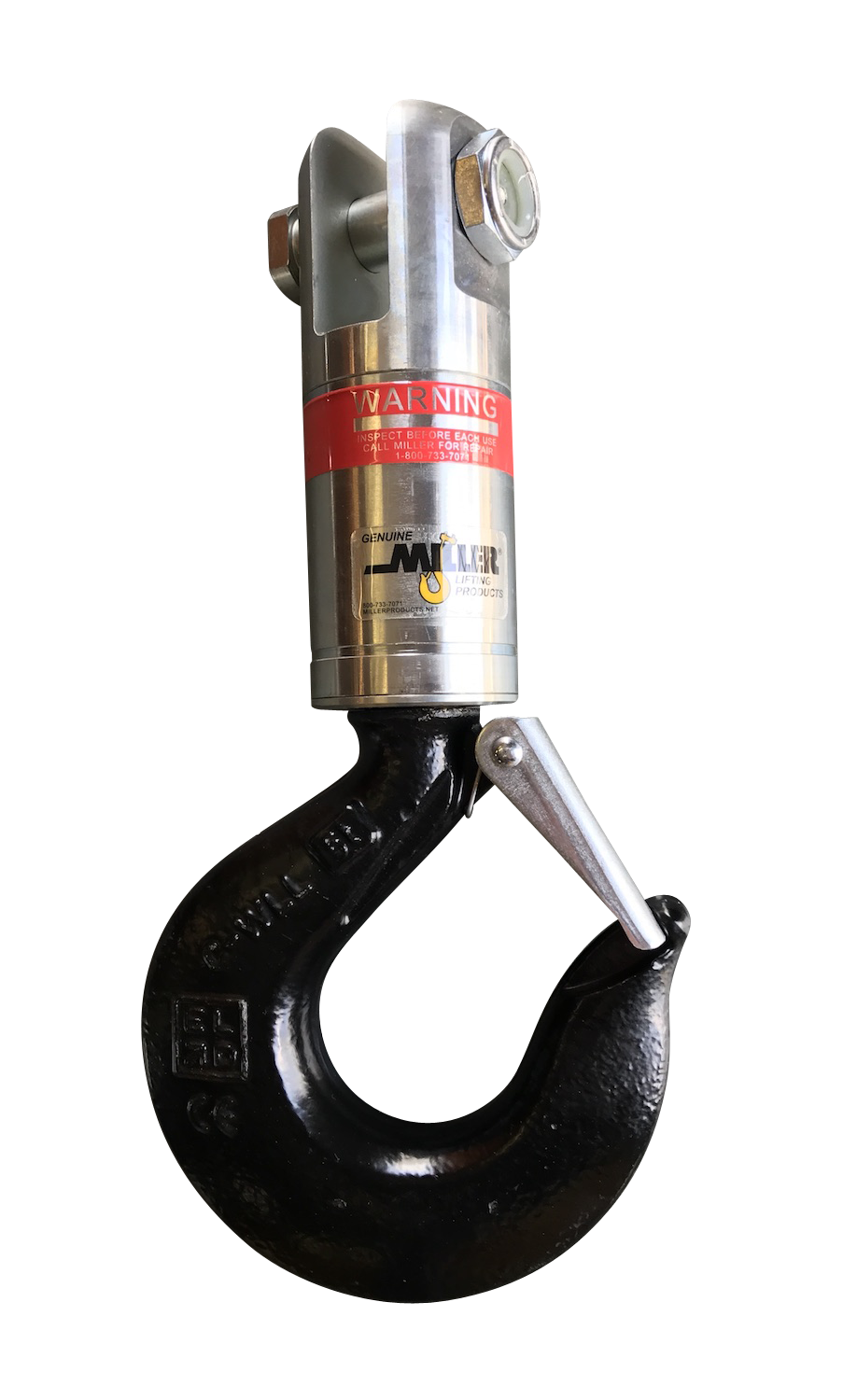

Miller Angular Contact Ball Bearing Swivel (Jaw to Hook)
$650.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Jaw to Hook) - WLL 1.5 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Jaw to Hook)
From
$650.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| B-115 | 1.5 tons | 7.6 | 3.6 | 1.6 | 2.3 |
| C-115 | 3 tons | 10.9 | 4.9 | 2 | 5.9 |
| D-115 | 5 tons | 13.8 | 6.5 | 2.5 | 11.8 |
| EE-115 | 8.5 tons | 17.7 | 8.7 | 2.9 | 24 |
| G-115 | 10 tons | 22.6 | 11 | 4 | 53 |
| GG-115 | 15 tons | 22.6 | 11 | 4 | 53 |
| H-115 | 25 tons | 29.6 | 12 | 7 | 131 |
| HH-115 | 35 tons | 29.6 | 12 | 7 | 131 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Clevis Pin Dia. | Clevis Inside Width | Pin Center to Hook Seat | Hook Opening |
|---|---|---|---|---|---|---|---|
| B-115 | 1.5 | 3/8" | 7.4" | 0.50" | 0.50" | 5.88" | 1.00" |
| C-115 | 3 | 1/2" | 10.7" | 0.75" | 0.75" | 8.56" | 1.34" |
| D-115 | 5 | 5/8" | 13.6" | 0.88" | 1.00" | 10.81" | 1.69 |
| EE-115 | 8.5 | 3/4" | 17.9" | 1.19" | 1.56" | 13.75" | 2.25" |
| G-115 | 10 | 7/8" | 22.6" | 1.50" | 1.75" | 17.88" | 3.00" |
| GG-115 | 15 | 1" | 22.6" | 1.50" | 1.75" | 17.88" | 3.00" |
| H-115 | 25 | 1 1/4" | 29.6" | 2.00" | 2.00" | 23.01" | 3.54" |
| HH-115 | 35 | 1 1/2" | 29.6" | 2.00" | 2.00" | 23.01" | 3.54" |
Features
- Jaw to Hook
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- B, C - Factory-lubricated, no grease fitting
- D, EE, G, GG, H, HH - Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
