Miller | SKU:
Miller-D-512

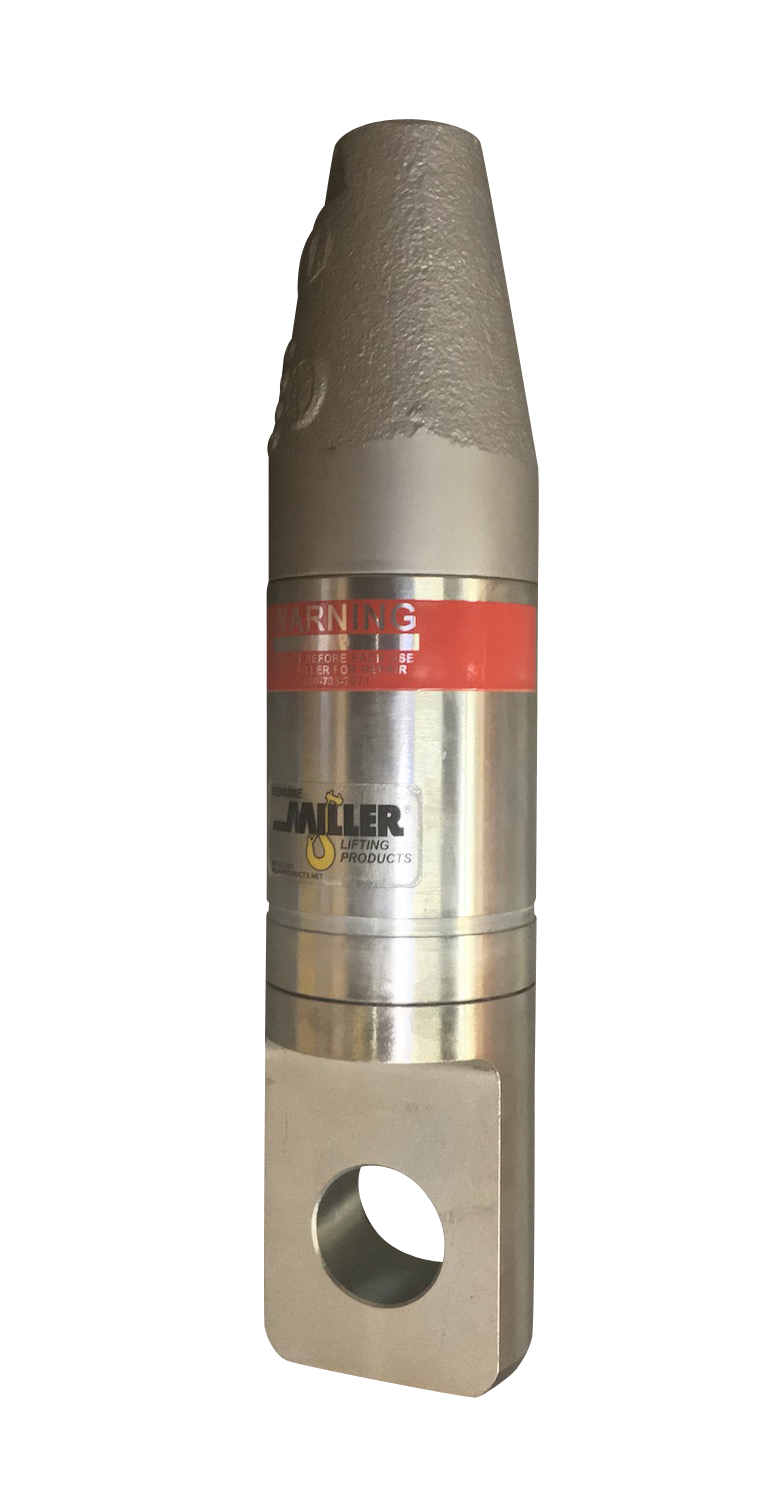

Miller Angular Contact Ball Bearing Swivel (Socket to Eye)
$1,280.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Socket to Eye) - WLL 5 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Socket to Eye)
From
$1,280.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| D-512 | 5 tons | 10.4 | 2.5 | 2.5 | 8.1 |
| EE-512 | 8.5 tons | 12.8 | 2.9 | 2.9 | 14.5 |
| G-512 | 10 tons | 16.3 | 4 | 4 | 32 |
| GG-512 | 15 tons | 16.3 | 4 | 4 | 33 |
| H-512 | 25 tons | 20.2 | 5 | 5 | 61 |
| HH-512 | 35 tons | 20.2 | 5 | 5 | 61 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Eye Hole Dia. | Eye Tang Thickness | Socket Hole Dia. |
|---|---|---|---|---|---|---|
| D-512 | 5 | 5/8" | 10.5" | 1.28" | 1.00" | 0.69" |
| EE-512 | 8.5 | 3/4" | 12.75" | 1.41" | 1.25" | 0.81" |
| G-512 | 10 | 7/8" | 16.25" | 1.66" | 1.72" | 0.97" |
| GG-512 | 15 | 1" | 16.25" | 2.03" | 1.94" | 1.13" |
| H-512 | 25 | 1 1/4" | 20.2" | 2.31" | 2.25" | 1.38" |
| HH-512 | 35 | 1 1/2" | 20.2" | 2.31" | 2.25" | 1.63" |
Features
- Socket to Eye
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
