Miller | SKU:
Miller-D-511

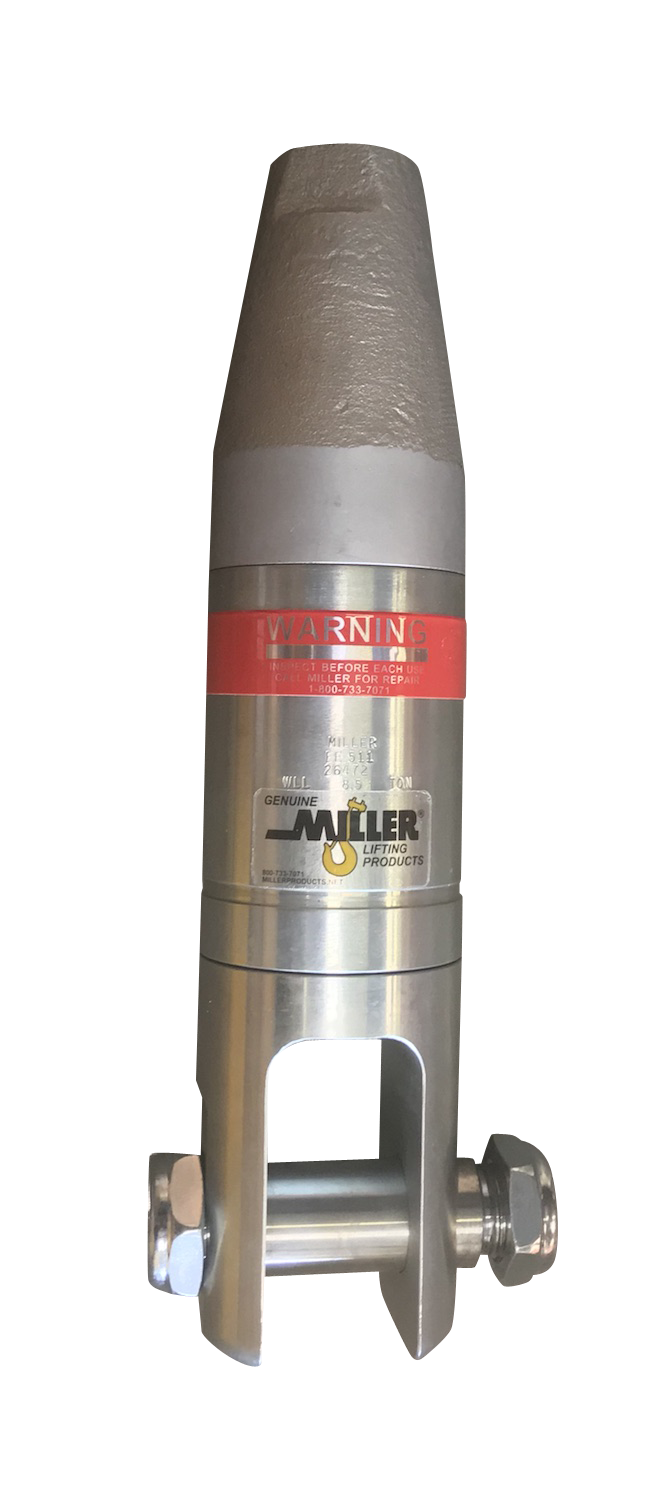

Miller Angular Contact Ball Bearing Swivel (Socket to Jaw)
$1,280.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Socket to Jaw) - WLL 5 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Socket to Jaw)
From
$1,280.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| D-511 | 5 tons | 10.4 | 3 | 2.5 | 8.7 |
| EE-511 | 8.5 tons | 12.8 | 3.5 | 2.9 | 14.5 |
| G-511 | 10 tons | 16.3 | 4.8 | 4 | 33 |
| GG-511 | 15 tons | 16.3 | 4.8 | 4 | 33 |
| H-511 | 25 tons | 20.2 | 6 | 5 | 74 |
| HH-511 | 35 tons | 20.2 | 6 | 5 | 74 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Clevis Pin Dia. | Clevis Inside Width | Socket Hole Dia. |
|---|---|---|---|---|---|---|
| D-511 | 5 | 5/8" | 10.4" | 0.88" | 1.00" | 0.69" |
| EE-511 | 8.5 | 3/4" | 12.75" | 1.19" | 1.56" | 0.81" |
| G-511 | 10 | 7/8" | 16.25" | 1.50" | 1.75" | 0.97" |
| GG-511 | 15 | 1" | 16.25" | 1.50" | 1.75" | 1.13" |
| H-511 | 25 | 1 1/4" | 20.2" | 2.00" | 2.00" | 1.38" |
| HH-511 | 35 | 1 1/2" | 20.2" | 2.00" | 2.00" | 1.63" |
Features
- Socket to Jaw
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
