Miller | SKU:
Miller-C-712

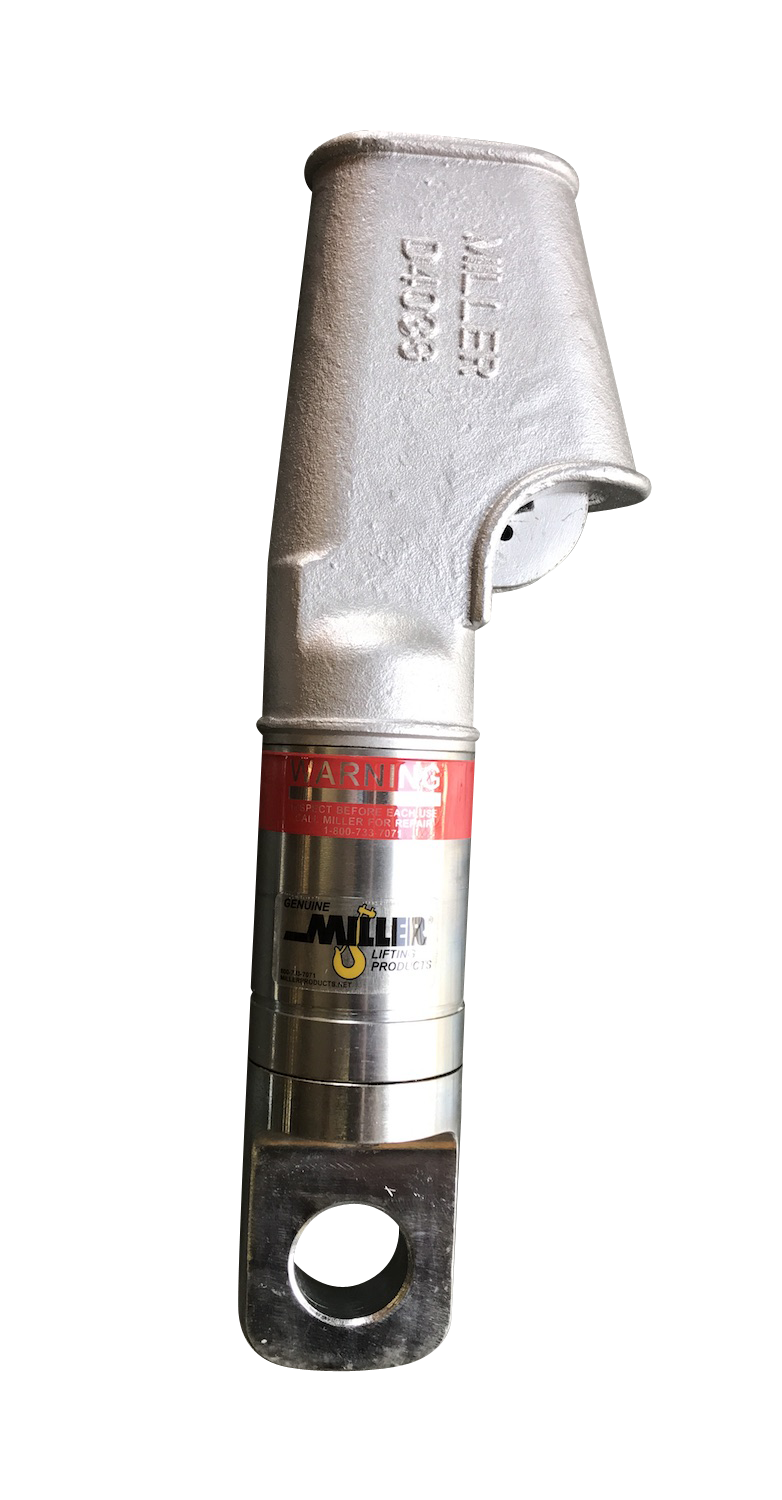

Miller Angular Contact Ball Bearing Swivel (Wedge to Eye)
$1,060.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Wedge to Eye) - WLL 3 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Wedge to Eye)
From
$1,060.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| C-712 | 3 tons | 11.3 | 3 | 2 | 6.9 |
| D-712 | 5 tons | 13.7 | 3.8 | 2.5 | 12.6 |
| EE-712 | 8.5 tons | 15.8 | 4.3 | 2.9 | 20.5 |
| G-712 | 10 tons | 21.5 | 6 | 4 | 45 |
| GG-712 | 15 tons | 21.5 | 6 | 4 | 46 |
| H-712 | 25 tons | 27.8 | 7.5 | 5 | 94 |
| HH-712 | 35 tons | 27.8 | 7.5 | 5 | 94 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Eye Hole Dia. | Eye Tang Thickness |
|---|---|---|---|---|---|
| C-712 | 3 | 1/2" | 11.0" | 0.91" | 0.75" |
| D-712 | 5 | 1/2", 5/8" | 13.5" | 1.28" | 1.00" |
| EE-712 | 8.5 | 1/2", 5/8", 3/4" | 15.5" | 1.41" | 1.25" |
| G-712 | 10 | 3/4", 7/8", 1" | 21.4" | 1.66" | 1.72" |
| GG-712 | 15 | 3/4", 7/8", 1" | 21.3" | 2.03" | 1.94" |
| H-712 | 25 | 1 1/8", 1 1/4" | 27.81" | 2.31" | 2.25" |
| HH-712 | 35 | 1 1/8", 1 1/4" | 27.81" | 2.31" | 2.25" |
Features
- Wedge to Eye
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- C - Factory-lubricated, no grease fitting
- D, EE, G, GG, H, HH - Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
