Miller | SKU:
Miller-C-715

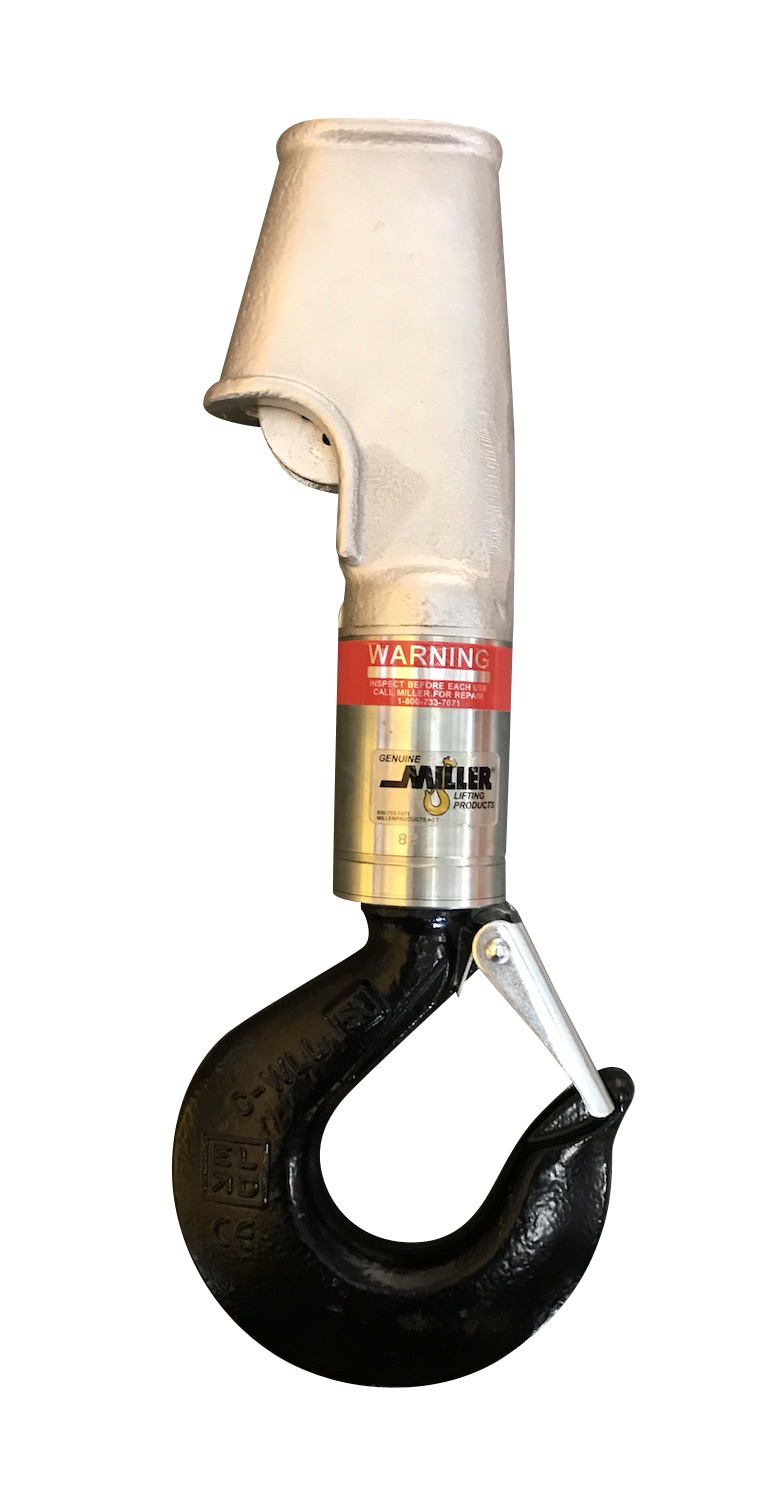

Miller Angular Contact Ball Bearing Swivel (Wedge to Hook)
$1,120.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Wedge to Hook) - WLL 3 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Wedge to Hook)
From
$1,120.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| C-715 | 3 tons | 14 | 4.9 | 2 | 7.8 |
| D-715 | 5 tons | 17.3 | 6.5 | 2.5 | 14.8 |
| EE-715 | 8.5 tons | 21.2 | 8.8 | 2.9 | 29.3 |
| G-715 | 10 tons | 26.6 | 11 | 4 | 60 |
| GG-715 | 15 tons | 26.6 | 11 | 4 | 60 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Hook Opening |
|---|---|---|---|---|
| C-715 | 3 | 1/2" | 14.0" | 1.34" |
| D-715 | 5 | 1/2", 5/8" | 17.3" | 1.69 |
| EE-715 | 8.5 | 1/2", 5/8", 3/4" | 21.2" | 2.25" |
| G-715 | 10 | 3/4", 7/8", 1" | 26.6" | 3.00" |
| GG-715 | 15 | 3/4", 7/8", 1" | 26.6" | 3.00" |
Features
- Wedge to Hook
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- C - Factory-lubricated, no grease fitting
- D, EE, G, GG - Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
