Miller | SKU:
Miller-C-711

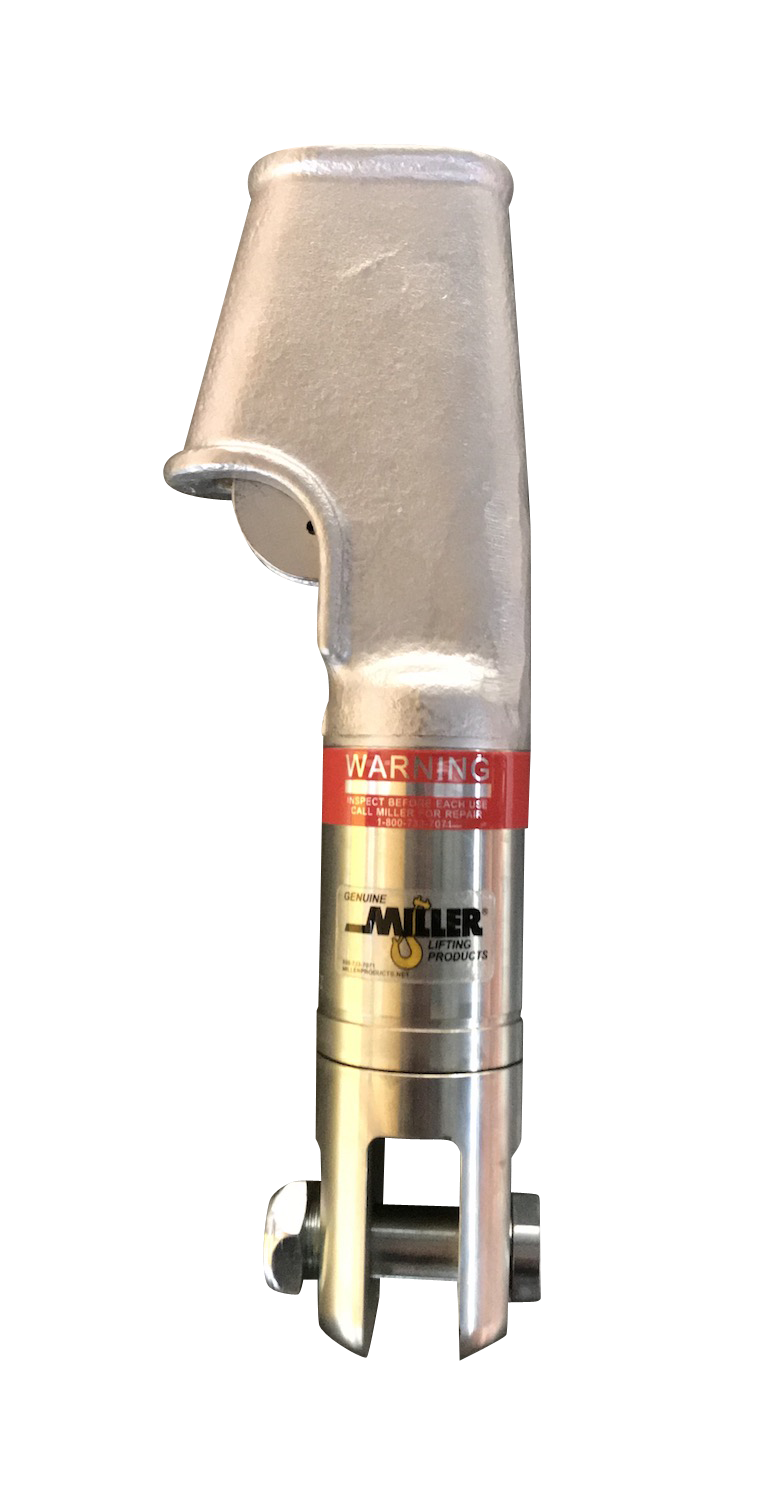

Miller Angular Contact Ball Bearing Swivel (Wedge to Jaw)
$1,060.00
Unit price
/
Unavailable
Miller Angular Contact Ball Bearing Swivel (Wedge to Jaw) - WLL 3 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Angular Contact Ball Bearing Swivel (Wedge to Jaw)
From
$1,060.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| C-711 | 3 tons | 10.3 | 3 | 2.4 | 6.9 |
| D-711 | 5 tons | 12.5 | 3.8 | 3 | 12.6 |
| EE-711 | 8.5 tons | 14.4 | 4.3 | 3.5 | 20.5 |
| G-711 | 10 tons | 19.8 | 6 | 4.8 | 47 |
| GG-711 | 15 tons | 19.8 | 6 | 4.8 | 47 |
| H-711 | 25 tons | 27.3 | 7.5 | 5 | 98 |
| HH-711 | 35 tons | 27.2 | 7.5 | 5 | 98 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Clevis Pin Dia. | Clevis Inside Width |
|---|---|---|---|---|---|
| C-711 | 3 | 1/2" | 10.25" | 0.75" | 0.75" |
| D-711 | 5 | 1/2", 5/8" | 12.53" | 0.88" | 1.00" |
| EE-711 | 8.5 | 1/2", 5/8", 3/4" | 14.44" | 1.19" | 1.56" |
| G-711 | 10 | 3/4", 7/8", 1" | 19.75" | 1.50" | 1.75" |
| GG-711 | 15 | 3/4", 7/8", 1" | 19.75" | 1.50" | 1.75" |
| H-711 | 25 | 1 1/8", 1 1/4" | 27.31' | 2.00" | 2.00" |
| HH-711 | 35 | 1 1/8", 1 1/4" | 27.31" | 2.00" | 2.00" |
Features
- Wedge to Jaw
- Angular contact ball bearing wire rope swivel
- 5:1 design factor
- C - Factory-lubricated, no grease fitting
- D, EE, G, GG, H, HH - Lubrication fitting
- Alloy steel, zinc-plated for corrosion resistance
- Made in USA
