Miller | SKU:
Miller-3A35

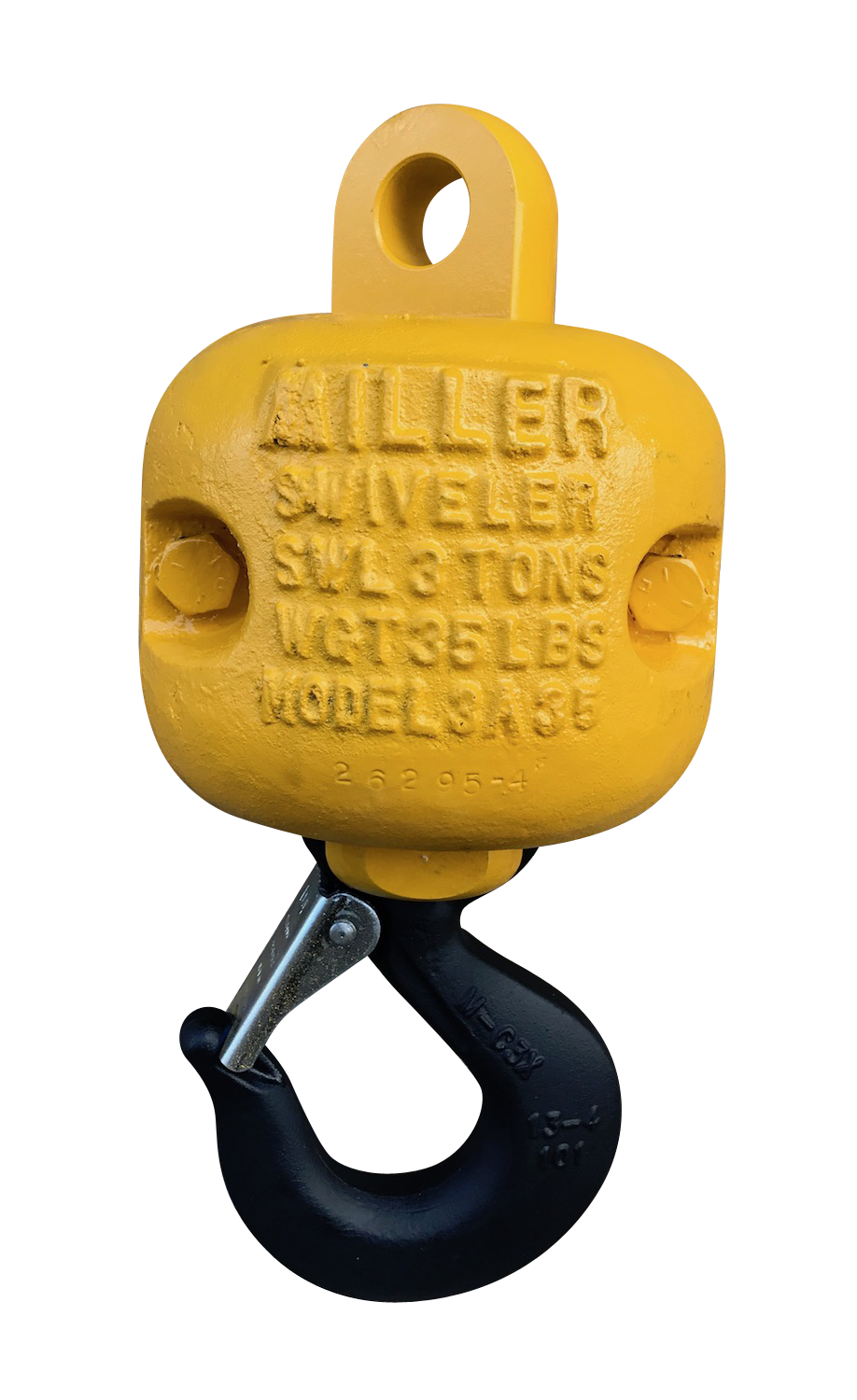

Miller Econo-Link Overhaul Ball (Eye)
$1,070.00
Unit price
/
Unavailable
Miller Econo-Link Overhaul Ball (Eye) - WLL 3 tons / 35 lbs is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Econo-Link Overhaul Ball (Eye)
From
$1,070.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Overhaul Wieght | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|---|
| 3A35 | 3 tons | 35 lbs | 13.9 | 6 | 6 | 35 |
| 6A100 | 6 tons | 100 lbs | 17.5 | 9 | 9 | 100 |
| 6A250 | 6 tons | 250 lbs | 17.5 | 12.5 | 12.5 | 250 |
| 10A200 | 10 tons | 200 lbs | 23 | 11 | 11 | 200 |
| 10A325 | 10 tons | 325 lbs | 23 | 13 | 13 | 325 |
| 15A320 | 15 tons | 320 lbs | 28 | 13 | 13 | 320 |
| 15A575 | 15 tons | 575 lbs | 28 | 15 | 15 | 575 |
Specifications:

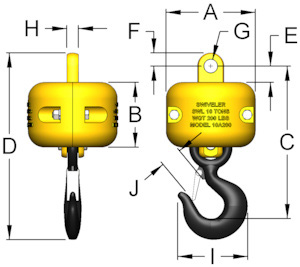

| SKU | Working Load limit (tons) | Wire Rope Size | Overhaul Weight (lbs) | Overall Length | Eye Hole Dia. | Eye Tang Thickness | Eye Center to Hook Seat | Hook Opening | Weight Diameter |
|---|---|---|---|---|---|---|---|---|---|
| 3A35 | 3 | 1/2" | 35 | 13.84" | 1.06" | 1.00" | 11.27" | 1.36" | 6" |
| 6A100 | 6 | 5/8", 3/4" | 100 | 17.48" | 1.41" | 1.19" | 14.17" | 1.61" | 9" |
| 6A250 | 6 | 5/8", 3/4" | 250 | 17.48" | 1.41" | 1.19" | 14.17" | 1.61" | 12.5" |
| 10A200 | 10 | 3/4", 7/8" | 200 | 23.00" | 1.66" | 1.44" | 18.78" | 2.27" | 11" |
| 10A325 | 10 | 3/4", 7/8" | 325 | 23.00" | 1.66" | 1.44" | 18.78" | 2.27" | 13" |
| 15A320 | 15 | 1" | 320 | 27.94" | 2.06" | 1.94" | 23.05" | 3.02" | 13" |
| 15A575 | 15 | 1" | 575 | 27.94" | 2.06" | 1.94" | 23.05" | 3.02" | 15" |
Features
- Eye Connection
- Compact overhaul ball assembly
- 4:1 design factor
- Top swiveling, roller thrust bearing
- Forged carbon steel hook with safety latch
- Made in USA
