Miller | SKU:
Miller-3E282

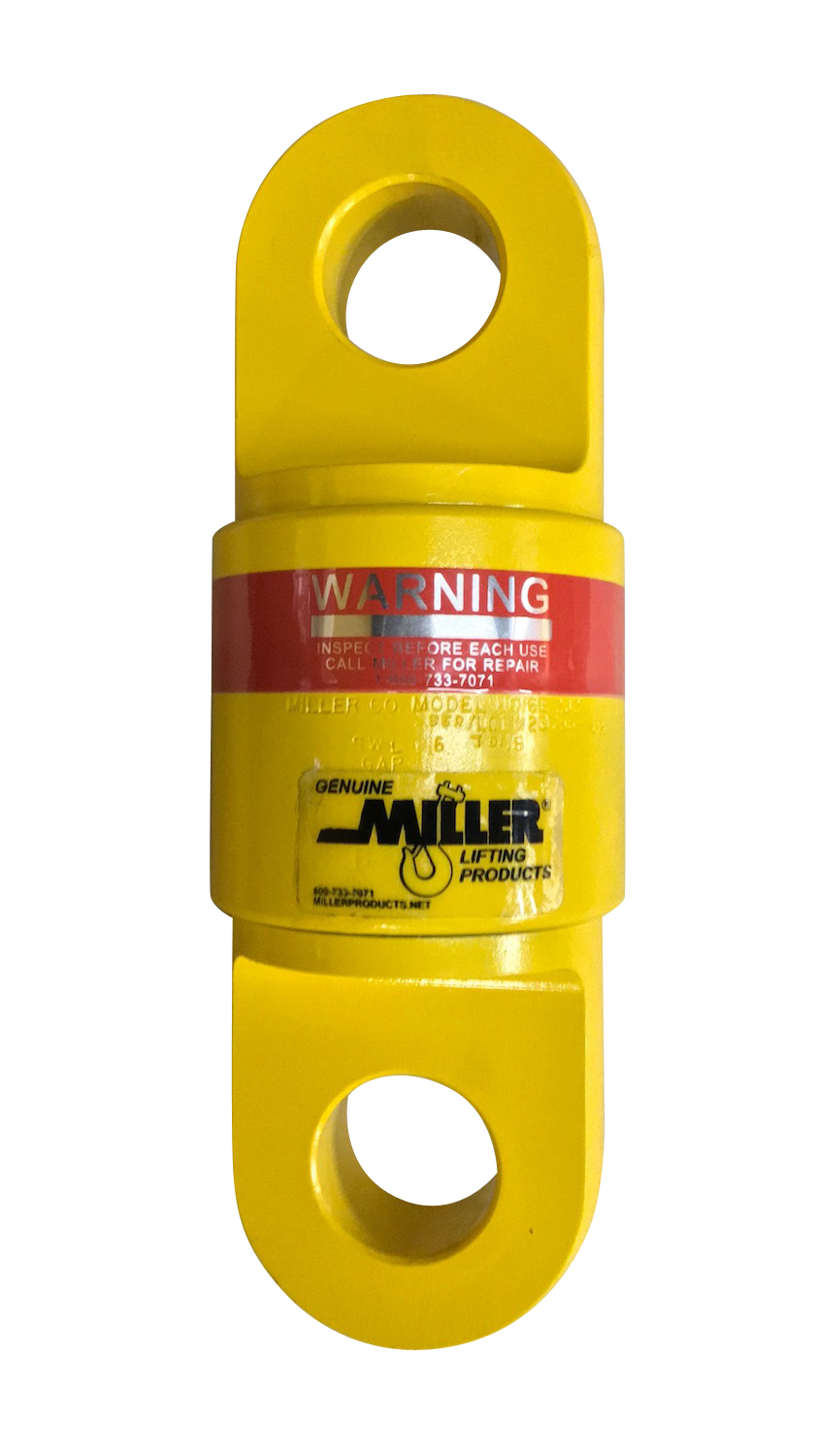

Miller Econo-Link Thrust Bearing Swivel (Eye to Eye)
$580.00
Unit price
/
Unavailable
Miller Econo-Link Thrust Bearing Swivel (Eye to Eye) - WLL 3 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Econo-Link Thrust Bearing Swivel (Eye to Eye)
From
$580.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| 3E282 | 3 tons | 7.9 | 2.6 | 2.6 | 6.3 |
| 6E282 | 6 tons | 9.9 | 3.3 | 3.3 | 12.4 |
| 10E282 | 10 tons | 12.9 | 3.8 | 3.8 | 20.6 |
| 15E282 | 15 tons | 15.1 | 4.1 | 4.1 | 31.8 |
Specifications:

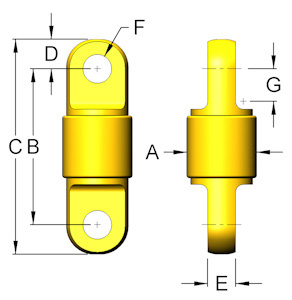

| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Eye Hole Dia. | Eye Tang Thickness | Eye to Eye Center Distance |
|---|---|---|---|---|---|---|
| 3E282 | 3 | 1/2" | 7.9" | 1.06" | 1.00" | 5.65" |
| 6E282 | 6 | 5/8" | 9.9" | 1.41" | 1.19" | 6.91" |
| 10E282 | 10 | 3/4" | 12.9" | 1.66" | 1.44" | 9.66" |
| 15E282 | 15 | 1" | 15.1" | 2.06" | 1.94" | 11.31" |
Features
- Eye to Eye
- Economical Miller thrust bearing swivel
- 4:1 design factor
- Sealed, maintenance-free
- Yellow enamel finish
- Made in USA
