Miller | SKU:
Miller-3E281

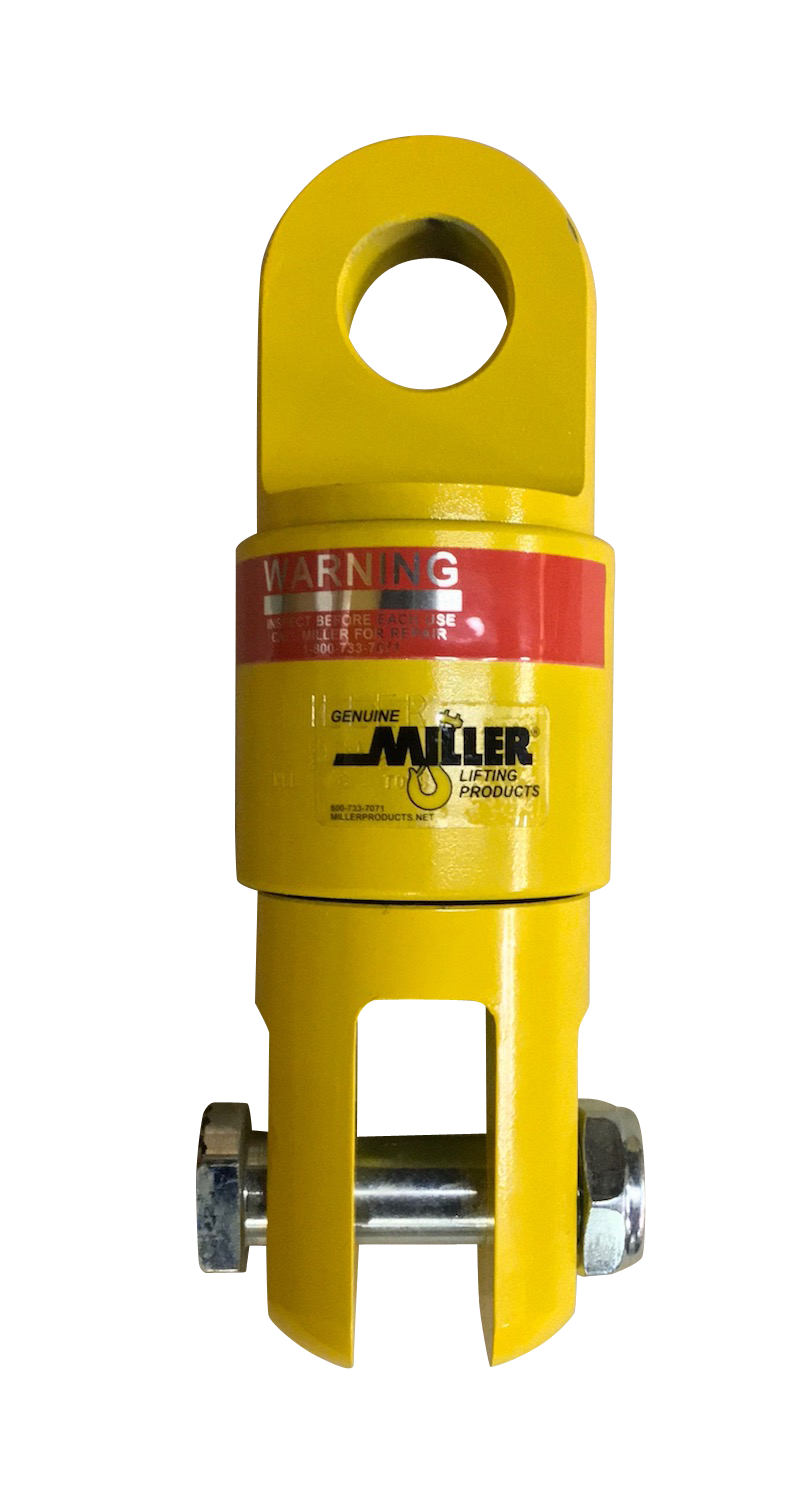

Miller Econo-Link Thrust Bearing Swivel (Eye to Jaw)
$630.00
Unit price
/
Unavailable
Miller Econo-Link Thrust Bearing Swivel (Eye to Jaw) - WLL 3 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Econo-Link Thrust Bearing Swivel (Eye to Jaw)
From
$630.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| 3E281 | 3 tons | 8.3 | 2.6 | 2.6 | 7.1 |
| 6E281 | 6 tons | 10.5 | 3.3 | 3.3 | 14.8 |
| 10E281 | 10 tons | 12.9 | 3.8 | 3.8 | 22.6 |
| 15E281 | 15 tons | 15.1 | 4.1 | 4.1 | 33.6 |

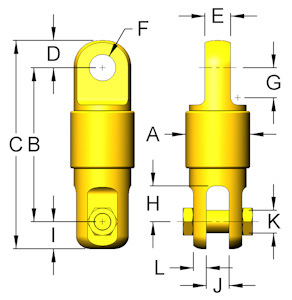

Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Clevis Pin Dia. | Eye Hole Dia. | Clevis Inside Width | Eye Tang Thickness | Eye to Clevis Pin Center Distance |
|---|---|---|---|---|---|---|---|---|
| 3E281 | 3 | 1/2" | 8.3" | 0.75" | 1.06" | 1.00" | 1.00" | 6.02" |
| 6E281 | 6 | 5/8" | 10.5" | 1.00" | 1.41" | 1.13" | 1.19" | 7.66" |
| 10E281 | 10 | 3/4" | 12.9" | 1.25" | 1.66" | 1.38" | 1.44" | 9.28" |
| 15E281 | 15 | 1" | 15.1" | 1.38" | 2.06" | 1.75" | 1.94" | 11.38" |
Features
- Eye to Jaw
- Economical Miller thrust bearing swivel
- 4:1 design factor
- Sealed, maintenance-free
- Yellow enamel finish
- Made in USA
