Miller | SKU:
Miller-3E182

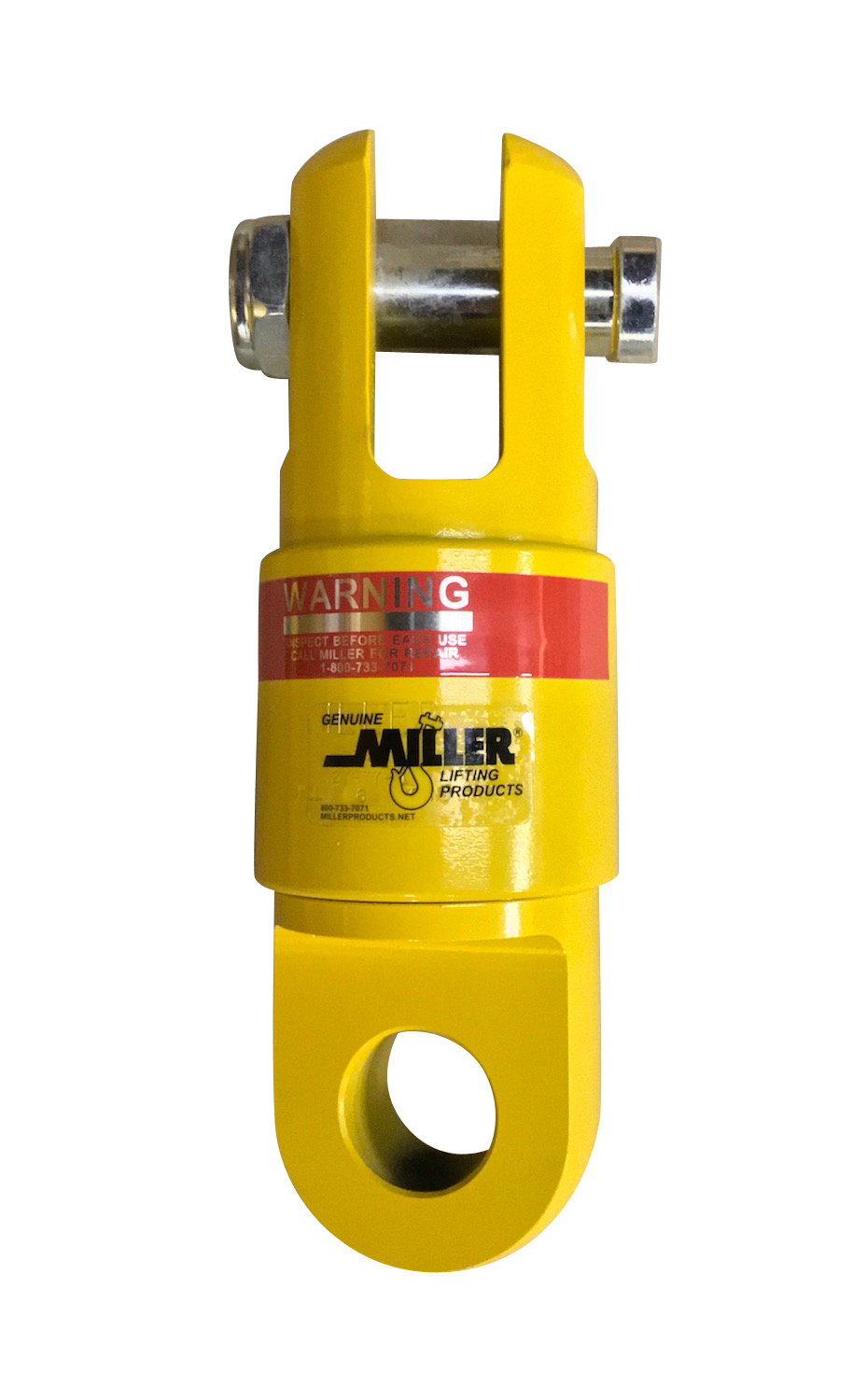

Miller Econo-Link Thrust Bearing Swivel (Jaw to Eye)
$630.00
Unit price
/
Unavailable
Miller Econo-Link Thrust Bearing Swivel (Jaw to Eye) - WLL 3 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Econo-Link Thrust Bearing Swivel (Jaw to Eye)
From
$630.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| 3E182 | 3 tons | 8.2 | 2.6 | 2.6 | 6.9 |
| 6E182 | 6 tons | 10.2 | 3.3 | 3.3 | 14.2 |
| 10E182 | 10 tons | 12.5 | 3.8 | 3.8 | 21.6 |
| 15E182 | 15 tons | 14.8 | 4.1 | 4.1 | 31.9 |

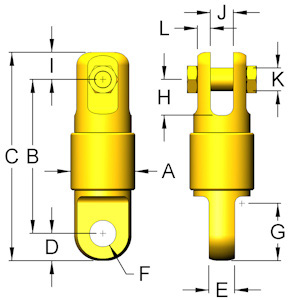

Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Clevis Pin Dia. | Eye Hole Dia. | Clevis Inside Width | Eye Tang Thickness | Eye to Clevis Pin Center Distance |
|---|---|---|---|---|---|---|---|---|
| 3E182 | 3 | 1/2" | 8.2" | 0.75" | 1.06" | 1.00" | 1.00" | 5.90" |
| 6E182 | 6 | 5/8" | 10.2" | 1.00" | 1.41" | 1.13" | 1.19" | 7.41" |
| 10E182 | 10 | 3/4" | 12.5" | 1.25" | 1.66" | 1.38" | 1.44" | 9.41" |
| 15E182 | 15 | 1" | 14.8" | 1.38" | 2.06" | 1.75" | 1.94" | 11.13" |
Features
- Jaw to Eye
- Economical Miller thrust bearing swivel
- 4:1 design factor
- Sealed, maintenance-free
- Yellow enamel finish
- Made in USA
