Miller | SKU:
Miller-3E181

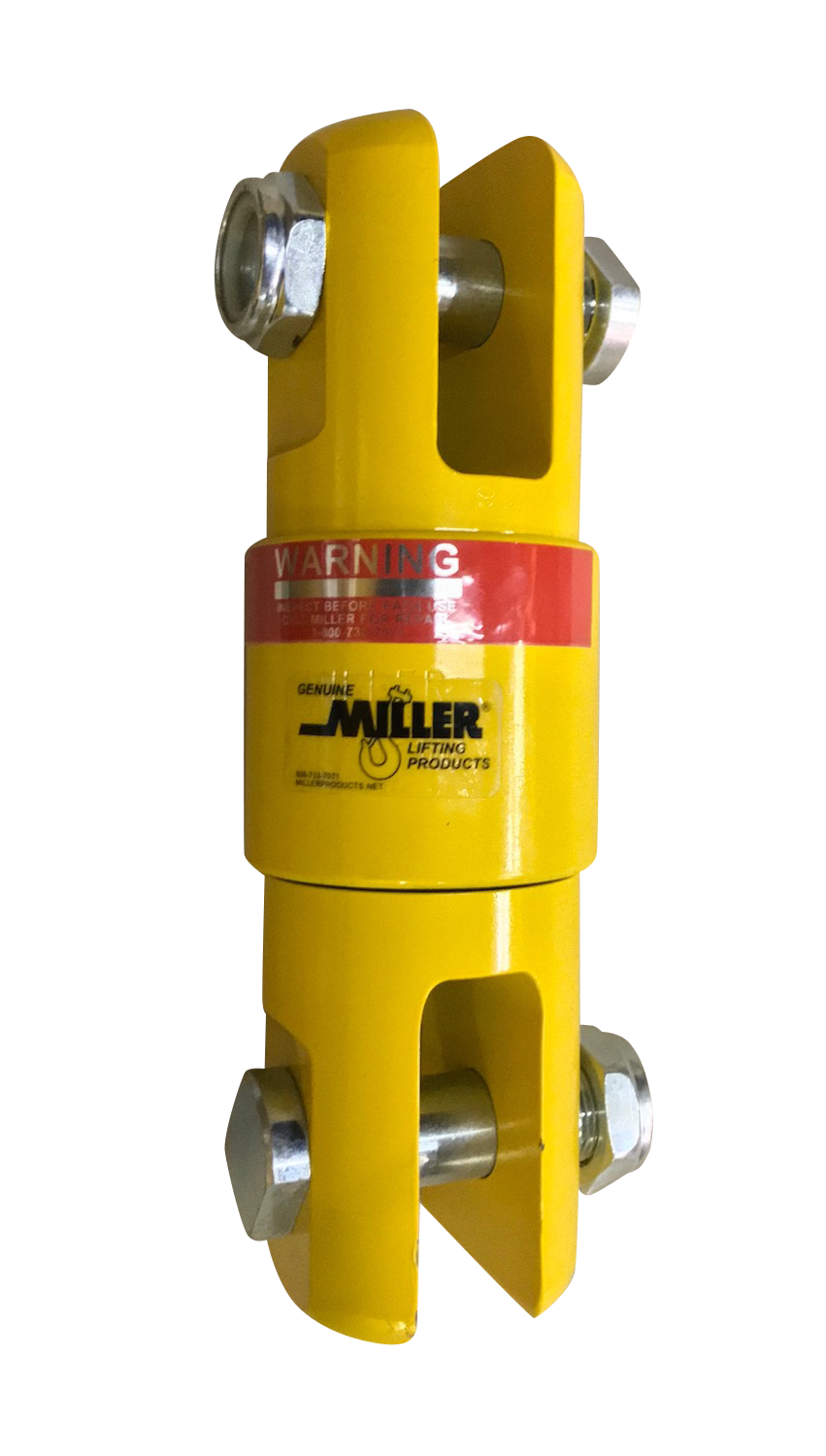

Miller Econo-Link Thrust Bearing Swivel (Jaw to Jaw)
$650.00
Unit price
/
Unavailable
Miller Econo-Link Thrust Bearing Swivel (Jaw to Jaw) - WLL 3 tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller Econo-Link Thrust Bearing Swivel (Jaw to Jaw)
From
$650.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| 3E181 | 3 tons | 8.7 | 2.6 | 2.6 | 7.7 |
| 6E181 | 6 tons | 10.8 | 3.3 | 3.3 | 16.7 |
| 10E181 | 10 tons | 12.5 | 3.8 | 3.8 | 23.7 |
| 15E181 | 15 tons | 14.8 | 4.1 | 4.1 | 33.8 |
Specifications:

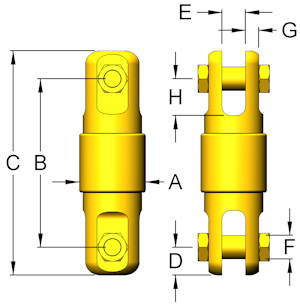

| SKU | Working Load limit (tons) | Wire Rope Size | Overall Length | Clevis Pin Dia. | Clevis Inside Width | Pin to Pin Center Distance |
|---|---|---|---|---|---|---|
| 3E181 | 3 | 1/2" | 8.7" | 0.75" | 1.00" | 6.27" |
| 6E181 | 6 | 5/8" | 10.8" | 1.00" | 1.13" | 8.16" |
| 10E181 | 10 | 3/4" | 12.5" | 1.25" | 1.38" | 9.53" |
| 15E181 | 15 | 1" | 14.8" | 1.38" | 1.75" | 11.19" |
Features
- Jaw to Jaw
- Economical Miller thrust bearing swivel
- 4:1 design factor
- Sealed, maintenance-free
- Yellow enamel finish
- Made in USA
