Miller | SKU:
Miller-B-225

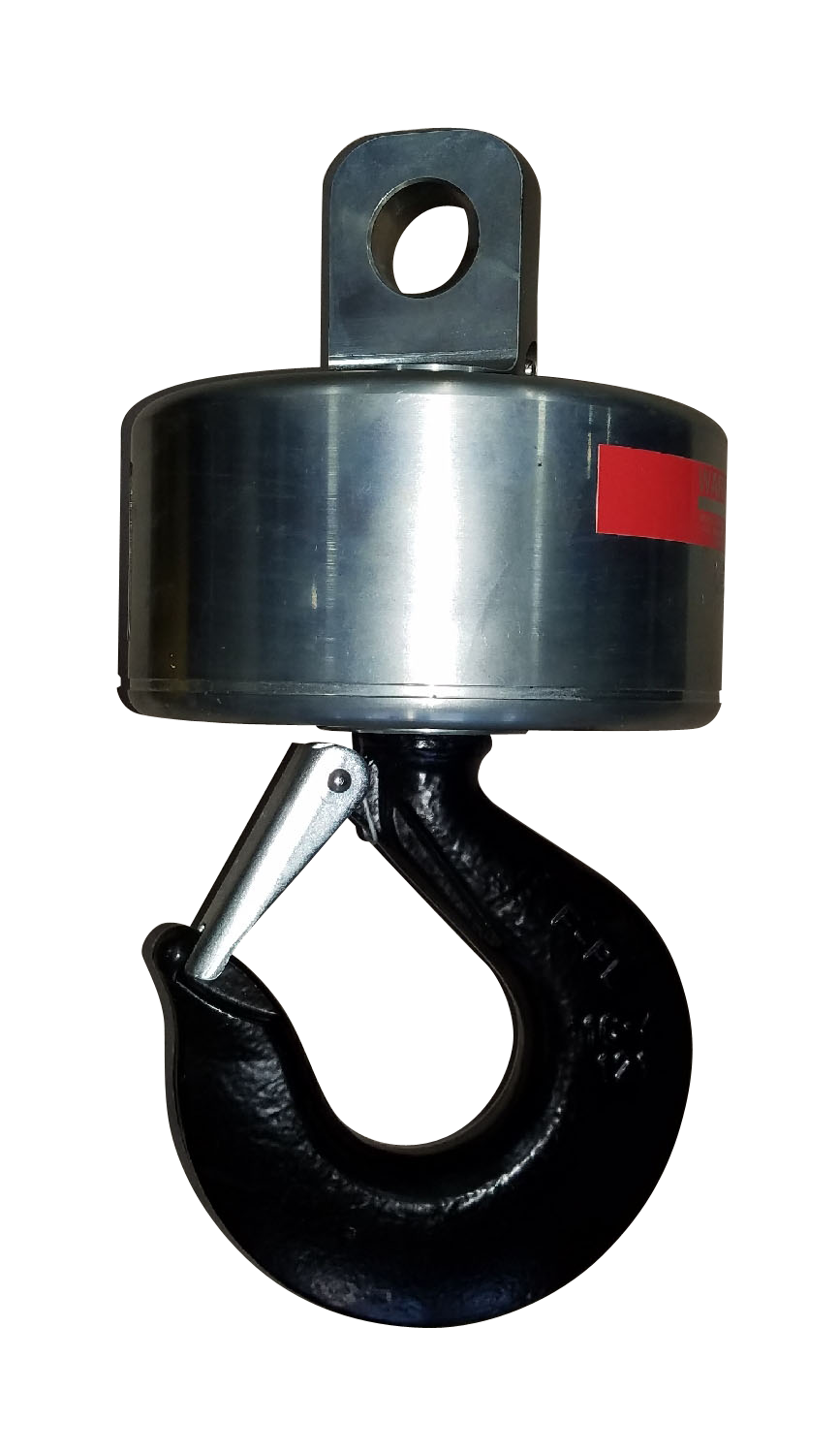

Miller g-Link Overhaul Swivel (Eye to Hook)
$1,630.00
Unit price
/
Unavailable
Miller g-Link Overhaul Swivel (Eye to Hook) - WLL 1.5 tons 9 lbs is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Miller g-Link Overhaul Swivel (Eye to Hook)
From
$1,630.00
Unit price
/
Unavailable
Dimensions:
| SKU | WLL | Length (in.) | Width (in.) | Height (in.) | Weight (LBS) |
|---|---|---|---|---|---|
| B-225 | 1.5 tons 9 lbs | 7.9 | 4.1 | 4 | 9 |
| C-225 | 3 tons 18 lbs | 10.8 | 5 | 5 | 18 |
| D-225 | 5 tons 44 lbs | 15.6 | 6.5 | 7 | 44 |
| EE-225 | 8.5 tons 60 lbs | 17.7 | 9 | 7 | 60 |
Specifications:
| SKU | Working Load limit (tons) | Wire Rope Size | Overhaul Weight (lbs) |
|---|---|---|---|
| B-225 | 1.5 | 3/8" | 9 |
| C-225 | 3 | 1/2" | 18 |
| D-225 | 5 | 5/8" | 44 |
| EE-225 | 8.5 | 3/4" | 60 |
Features
- Eye to Hook
- Compact overhaul swivel hook
- 5:1 design factor
- Bottom swiveling, angular contact bearings
- Forged hook with safety latch
- Made in USA
