Actek | SKU:
Actek-68210
Actek Forged Side Pull (Inch)
$37.94
Unit price
/
Unavailable
Actek Forged Side Pull (Inch) - 1000 lbs / 3/8" - 16 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek Forged Side Pull (Inch)
From
$37.94
Unit price
/
Unavailable
Related Products:
Characteristics:

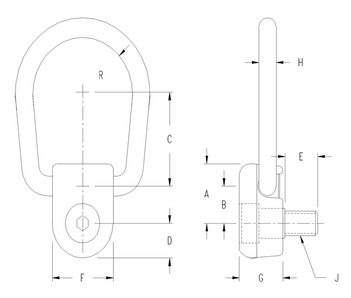

| Part Number | Rated Load | Thread Size | A | B | C | D | E | F | G | H | J | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 68210 | 1000 lbs | 3/8" - 16 | 1 1/8 in | 5/8 in | 1 1/2 in | 5/8 in | 5/8 in | 1 1/4 in | 7/8 in | 5/16 in | 3/8" - 16 | 13/16 in |
| 68220 | 2000 lbs | 1/2" - 13 | 1 5/8 in | 7/8 in | 1 7/8 in | 7/8 in | 3/4 in | 1 3/4 in | 1 5/16 in | 7/16 in | 1/2" - 13 | 1 1/8 in |
| 68225 | 2500 lbs | 5/8" - 11 | 1 5/8 in | 7/8 in | 1 7/8 in | 7/8 in | 7/8 in | 1 3/4 in | 1 5/16 in | 7/16 in | 5/8" - 11 | 1 1/8 in |
| 68250 | 5000 lbs | 3/4" - 10 | 2 3/16 in | 1 1/8 in | 2 3/4 in | 1 in | 1 in | 2 in | 1 11/16 in | 5/8 in | 3/4" - 10 | 1 3/8 in |
Additional:
| Part Number | Rated Load | Thread Size | Torque | Weight | Applicable Screw P/N |
|---|---|---|---|---|---|
| 68210 | 1000 lbs | 3/8" - 16 | 7-10 ft-lbs | 0.7 lbs | 68218 |
| 68220 | 2000 lbs | 1/2" - 13 | 20-25 ft-lbs | 1.7 lbs | 68222 |
| 68225 | 2500 lbs | 5/8" - 11 | 42-50 ft-lbs | 1.7 lbs | 68227 |
| 68250 | 5000 lbs | 3/4" - 10 | 70-80 ft-lbs | 3.5 lbs | 68258 |
Features
- Units: Inch
- Material: Alloy Steel
- Swivel Angle: 360°
- Safety Factor: 5:1
- Finish: Black Oxide
