Actek | SKU:
Actek-68310
Actek Forged Side Pull (Metric)
$42.41
Unit price
/
Unavailable
Actek Forged Side Pull (Metric) - 1000 lbs / M10 x 1.50 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek Forged Side Pull (Metric)
From
$42.41
Unit price
/
Unavailable
Related Products:
Characteristics:

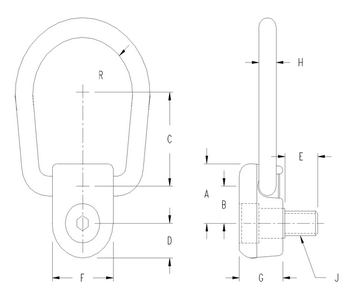

| Part Number | Rated Load | Thread Size | A | B | C | D | E | F | G | H | J | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 68310 | 1000 lbs | M10 x 1.50 | 1 1/8 in | 5/8 in | 1 1/2 in | 5/8 in | 5/8 in | 1 1/4 in | 7/8 in | 5/16 in | M10 x 1.50 | 13/16 in |
| 68320 | 2000 lbs | M12 x 1.75 | 1 5/8 in | 7/8 in | 1 7/8 in | 7/8 in | 3/4 in | 1 3/4 in | 1 5/16 in | 7/16 in | M12 x 1.75 | 1 1/8 in |
| 68325 | 2500 lbs | M16 x 2.00 | 1 5/8 in | 7/8 in | 1 7/8 in | 7/8 in | 7/8 in | 1 3/4 in | 1 5/16 in | 7/16 in | M16 x 2.00 | 1 1/8 in |
| 68350 | 5000 lbs | M20 x 2.50 | 2 3/16 in | 1 1/8 in | 2 3/4 in | 1 in | 1 in | 2 in | 1 11/16 in | 5/8 in | M20 x 2.50 | 1 3/8 in |
Additional:
| Part Number | Rated Load | Thread Size | Torque | Weight | Applicable Screw P/N |
|---|---|---|---|---|---|
| 68310 | 1000 lbs | M10 x 1.50 | 7-10 ft-lbs | 0.7 lbs | 68318 |
| 68320 | 2000 lbs | M12 x 1.75 | 20-25 ft-lbs | 1.7 lbs | 68322 |
| 68325 | 2500 lbs | M16 x 2.00 | 42-50 ft-lbs | 1.7 lbs | 68327 |
| 68350 | 5000 lbs | M20 x 2.50 | 70-80 ft-lbs | 3.5 lbs | 68358 |
Features
- Units: Metric
- Material: Alloy Steel
- Swivel Angle: 360°
- Safety Factor: 5:1
- Finish: Black Oxide
