Actek  |  SKU: Actek-56912

Actek Forged Swivel Hoist Rings (Metric)

$80.24

Related Products:

Characteristics:

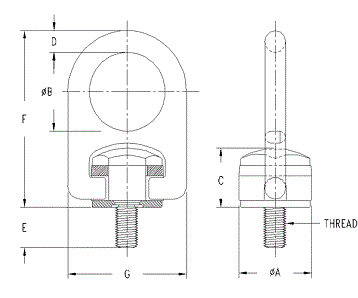

Part Number Rated Load Thread Size A B C D E F G Torque Weight Applicable Screw PN
56912 400 kg M8 x 1.25 1.32 in 1.40 in 1.23 in 0.44 in 15 mm 3.41 in 2.38 in 9 Nm 1 lbs 54142
56914 400 kg M8 x 1.25 1.32 in 1.40 in 1.23 in 0.44 in 20 mm 3.41 in 2.38 in 9 Nm 1 lbs 54144
56916 500 kg M10 x 1.50 1.32 in 1.40 in 1.23 in 0.44 in 15 mm 3.41 in 2.38 in 16 Nm 1 lbs 54146
56918 500 kg M10 x 1.50 1.32 in 1.40 in 1.23 in 0.44 in 25 mm 3.41 in 2.38 in 16 Nm 1 lbs 54147
56923 1,050 kg M12 x 1.75 2.23 in 2.40 in 2.00 in 0.75 in 20 mm 5.68 in 4.05 in 37 Nm 4 lbs
56924 1,050 kg M12 x 1.75 2.23 in 2.40 in 2.00 in 0.75 in 25 mm 5.68 in 4.05 in 37 Nm 4 lbs 54048
56926 1,050 kg M12 x 1.75 2.23 in 2.40 in 2.00 in 0.75 in 35 mm 5.68 in 4.05 in 37 Nm 4 lbs 54052
56928 1,050 kg M14 x 2.00 2.23 in 2.40 in 1.99 in 0.75 in 30 mm 5.68 in 4.05 in 40 Nm 4 lbs
56930 1,900 kg M16 x 2.00 2.23 in 2.40 in 1.98 in 0.75 in 25 mm 5.68 in 4.05 in 80 Nm 4 lbs 54056
56932 1,900 kg M16 x 2.00 2.23 in 2.40 in 1.98 in 0.75 in 35 mm 5.68 in 4.05 in 80 Nm 4 lbs 54058
56936 2,150 kg M20 x 2.50 2.23 in 2.40 in 1.97 in 0.75 in 25 mm 5.68 in 4.05 in 135 Nm 4 lbs 54054
56937 2,150 kg M20 x 2.50 2.23 in 2.40 in 1.97 in 0.75 in 35 mm 5.68 in 4.05 in 135 Nm 4 lbs
56938 2,150 kg M20 x 2.50 2.23 in 2.40 in 1.97 in 0.75 in 40 mm 5.68 in 4.05 in 135 Nm 4 lbs 54055
56942 3,000 kg M20 x 2.50 2.95 in 3.20 in 2.66 in 1.00 in 30 mm 7.58 in 5.40 in 135 Nm 9 lbs 54244
56946 4,200 kg M24 x 3.00 2.95 in 3.20 in 2.64 in 1.00 in 30 mm 7.58 in 5.40 in 311 Nm 9 lbs 54252
56948 4,200 kg M24 x 3.00 2.95 in 3.20 in 2.64 in 1.00 in 40 mm 7.58 in 5.40 in 311 Nm 9 lbs 54250
56949 4,500 kg M30 x 3.50 2.95 in 3.20 in 2.60 in 1.00 in 40 mm 7.58 in 5.40 in 637 Nm 9 lbs 54243
56950 4,500 kg M30 x 3.50 2.95 in 3.20 in 2.60 in 1.00 in 50 mm 7.58 in 5.40 in 637 Nm 9 lbs 54242
56956 7,000 kg M30 x 3.50 3.73 in 4.00 in 3.28 in 1.25 in 50 mm 9.39 in 6.75 in 637 Nm 19 lbs 54842
56960 7,000 kg M33 x 3.50 3.73 in 4.00 in 3.28 in 1.25 in 55 mm 9.39 in 6.75 in 637 Nm 19 lbs 54848
56966 11,000 kg M36 x 4.00 3.73 in 4.00 in 3.26 in 1.25 in 65 mm 9.39 in 6.75 in 1085 Nm 20 lbs 54344
56968 12,500 kg M42 x 4.50 3.73 in 4.00 in 3.28 in 1.25 in 80 mm 9.39 in 6.75 in 1085 Nm 21 lbs 54344

Features

  • Units: Metric
  • Material: Alloy Steel
  • Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
  • Swivel Angle: 360°
  • Pivot Angle: 180°
  • Safety Factor: 5:1
