Actek | SKU:
Actek-42620
Actek MOLD HANDLER® (Inch)
$140.63
Unit price
/
Unavailable
Actek MOLD HANDLER® (Inch) - 800 lbs / 5/16" - 18 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek MOLD HANDLER® (Inch)
From
$140.63
Unit price
/
Unavailable
Related Products:
Characteristics:

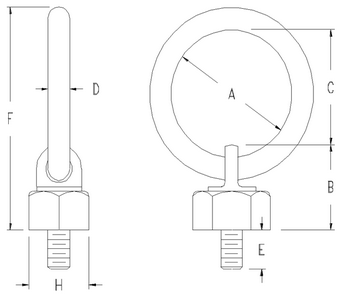

| Part Number | Rated Load | Thread Size | A | B | C | D | E | F | H | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 42620 | 800 lbs | 5/16" - 18 | 2 in | 1.48 in | 1.75 in | 3/8 in | 1/2 in | 3.60 in | 1 in | 0.7 lbs |
| 42630 | 1000 lbs | 3/8" - 16 | 2 in | 1.48 in | 1.75 in | 3/8 in | 5/8 in | 3.60 in | 1 in | 0.7 lbs |
| 42640 | 2500 lbs | 1/2" - 13 | 3 in | 2.68 in | 2.57 in | 5/8 in | 3/4 in | 5.87 in | 2 in | 3 lbs |
| 42650 | 4000 lbs | 5/8" - 11 | 3 in | 2.68 in | 2.57 in | 5/8 in | 1 in | 5.87 in | 2 in | 3 lbs |
| 42660 | 7000 lbs | 3/4" - 10 | 4 in | 4.25 in | 3.31 in | 1 in | 1 1/4 in | 8.56 in | 3 in | 9.5 lbs |
| 42670 | 10000 lbs | 1" - 8 | 4 in | 4.25 in | 3.31 in | 1 in | 1 1/2 in | 8.56 in | 3 in | 9.5 lbs |
Features
- Units: Inch
- Material: Alloy Steel
- Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
- Swivel Angle: 360°
- Pivot Angle: 180°
- Safety Factor: 4:1
