Actek | SKU:
Actek-42920
Actek MOLD HANDLER® (Metric)
$148.08
Unit price
/
Unavailable
Actek MOLD HANDLER® (Metric) - 400 kg / M8 x 1.25 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek MOLD HANDLER® (Metric)
From
$148.08
Unit price
/
Unavailable
Related Products:
Characteristics:

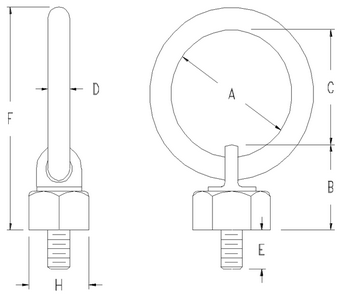

| Part Number | Rated Load | Thread Size | A | B | C | D | E | F | H | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 42920 | 400 kg | M8 x 1.25 | 2 in | 1.48 in | 1.75 in | 3/8 in | 1/2 in | 3.60 in | 1 in | 0.7 lbs |
| 42930 | 500 kg | M10 x 1.50 | 2 in | 1.48 in | 1.75 in | 3/8 in | 5/8 in | 3.60 in | 1 in | 0.7 lbs |
| 42940 | 1050 kg | M12 x 1.75 | 3 in | 2.68 in | 2.57 in | 5/8 in | 3/4 in | 5.87 in | 2 in | 3 lbs |
| 42950 | 1900 kg | M16 x 2.00 | 3 in | 2.68 in | 2.57 in | 5/8 in | 1 in | 5.87 in | 2 in | 3 lbs |
| 42960 | 2150 kg | M20 x 2.50 | 4 in | 4.25 in | 3.31 in | 1 in | 1 1/4 in | 8.56 in | 3 in | 9.5 lbs |
| 42970 | 4200 kg | M24 x 3.00 | 4 in | 4.25 in | 3.31 in | 1 in | 1 1/2 in | 8.56 in | 3 in | 9.5 lbs |
Features
- Units: Metric
- Material: Alloy Steel
- Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
- Swivel Angle: 360°
- Pivot Angle: 180°
- Safety Factor: 4:1
