Actek | SKU:
Actek-44924
Actek Round Base Swivel Hoist Ring (Metric)
$187.13
Unit price
/
Unavailable
Actek Round Base Swivel Hoist Ring (Metric) - 1,050 kg / M12 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek Round Base Swivel Hoist Ring (Metric)
From
$187.13
Unit price
/
Unavailable
Related Products:
Characteristics:

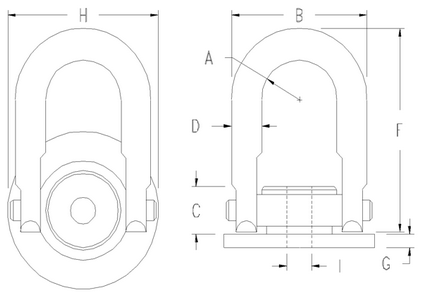

| Part Number | Rated Load | A | B | C | D | F | G | H | I | Torque | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44924 | 1,050 kg | 0.92 in | 3 21/64 in | 1 7/32 in | 3/4 in | 6 3/4 in | 1/4 in | 3 1/2 in | M12 | 37 Nm | 3.5 lbs |
| 44930 | 1,900 kg | 0.92 in | 3 21/64 in | 1 7/32 in | 3/4 in | 6 3/4 in | 1/4 in | 3 1/2 in | M16 | 80 Nm | 3.5 lbs |
| 44936 | 2,150 kg | 0.92 in | 3 21/64 in | 1 7/32 in | 3/4 in | 6 3/4 in | 1/4 in | 3 1/2 in | M20 | 135 Nm | 3.5 lbs |
| 44942 | 3,000 kg | 1.40 in | 4 13/16 in | 1 37/64 in | 1 in | 8 in | 13/32 in | 5 in | M20 | 135 Nm | 9 lbs |
| 44944 | 4,200 kg | 1.40 in | 4 13/16 in | 1 37/64 in | 1 in | 8 in | 13/32 in | 5 in | M24 | 311 Nm | 9 lbs |
| 44956 | 7,000 kg | 1.75 in | 6 in | 1 55/64 in | 1 1/4 in | 8 1/2 in | 1/2 in | 7 in | M30 | 637 Nm | 17 lbs |
| 44960 | 7,000 kg | 1.75 in | 6 in | 1 55/64 in | 1 1/4 in | 8 1/2 in | 1/2 in | 7 in | M33 | 937 Nm | 17 lbs |
| 44961 | 7,000 kg | 1.75 in | 6 in | 1 55/64 in | 1 1/4 in | 8 1/2 in | 1/2 in | 7 in | M36 | 1085 Nm | 17 lbs |
| 44962 | 10,000 kg | 2.00 in | 7 in | 2 7/64 in | 1 1/2 in | 10 11/32 in | 1/2 in | 7 in | M36 | 1085 Nm | 24 lbs |
| 44966 | 11,000 kg | 2.25 in | 8 in | 2 17/32 in | 1 3/4 in | 12 5/32 in | 11/16 in | 8 1/2 in | M36 | 1085 Nm | 40 lbs |
| 44968 | 12,500 kg | 2.25 in | 8 in | 2 17/32 in | 1 3/4 in | 12 5/32 in | 11/16 in | 8 1/2 in | M42 | 1085 Nm | 40 lbs |
| 44980 | 13,500 kg | 2.25 in | 8 in | 2 17/32 in | 1 3/4 in | 12 5/32 in | 11/16 in | 8 1/2 in | M48 | 1085 Nm | 40 lbs |
Features
- Units: Metric
- Material: Alloy Steel
- Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
- Swivel Angle: 360°
- Pivot Angle: 180°
- Safety Factor: 5:1
