Actek | SKU:
Actek-60002

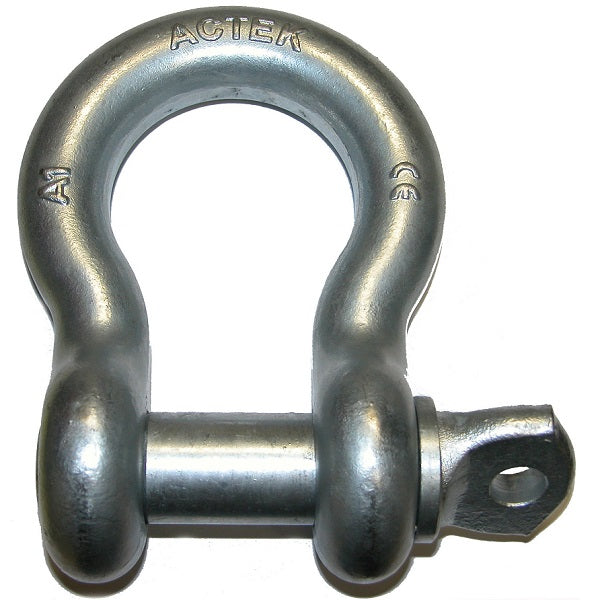

Actek Screw Pin Type Alloy Shackle
$16.71
Unit price
/
Unavailable
Actek Screw Pin Type Alloy Shackle - 2 Tons is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Actek Screw Pin Type Alloy Shackle
From
$16.71
Unit price
/
Unavailable
Characteristics:

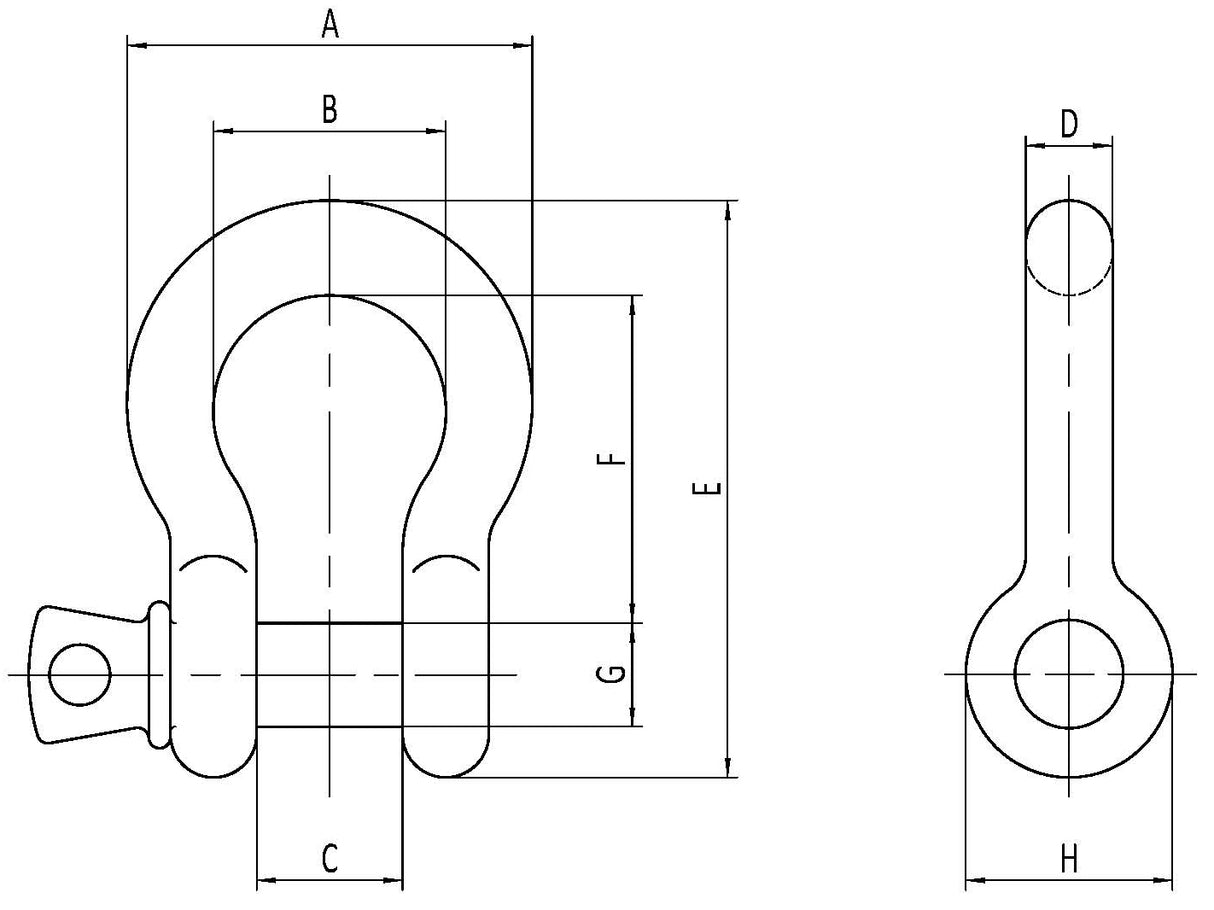

| Part Number | Working Load Limit | A | B | C | D | E | F | G | H | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 60002 | 2 Tons | 1-3/4 in | 1 in | 21/32 in | 3/8 in | 2-1/2 in | 1-7/16 in | 7/16 in | 1 in | 0.31 lbs |
| 60006 | 5 Tons | 2-15/16 in | 1-11/16 in | 1-1/16 in | 5/8 in | 4-3/16 in | 2-3/8 in | 3/4 in | 1-1/2 in | 1.4 lbs |
| 60008 | 7 Tons | 3-1/2 in | 2 in | 1-1/4 in | 3/4 in | 5 in | 2-13/16 in | 7/8 in | 1-13/16 in | 2.3 lbs |
| 60010 | 9 1/2 Tons | 4 in | 2-1/4 in | 1-7/16 in | 7/8 in | 5-13/16 in | 3-5/16 in | 1 in | 2-1/8 in | 3.5 lbs |
| 60012 | 12 1/2 Tons | 4-11/16 in | 2-11/16 in | 1-11/16 in | 1 in | 6-1/2 in | 3-3/4 in | 1-1/8 in | 2-3/8 in | 5.15 lbs |
| 60016 | 18 Tons | 5-3/4 in | 3-1/4 in | 2-1/32 in | 1-1/4 in | 8-1/4 in | 4-11/16 in | 1-3/8 in | 3 in | 10.5 lbs |
| 60020 | 25 Tons | 6-7/8 in | 3-7/8 in | 2-3/4 in | 1-1/2 in | 10 in | 5-3/4 in | 1-5/8 in | 3-5/8 in | 17.95 lbs |
Features
- Style: Screw Pin
- Material: Alloy Steel
- Finish: Hot Dipped Galvanized or Self Colored
- Safety Factor: 5:1
